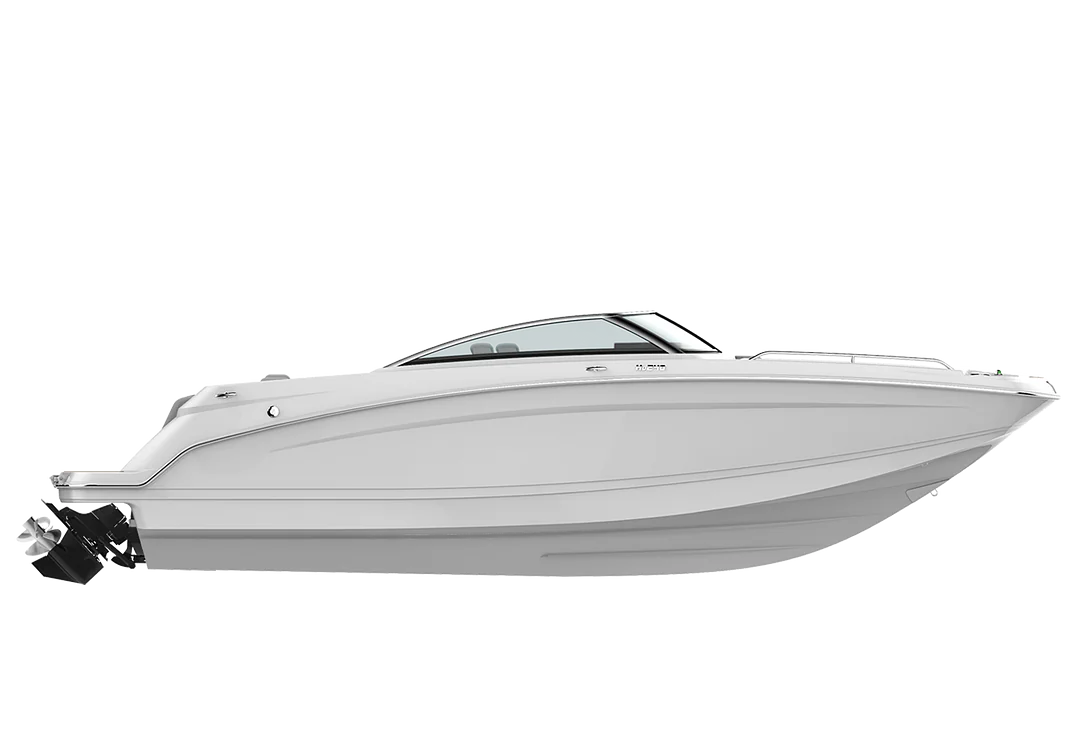

Discover the HD5

Four Winns

Refinement, class, and style all speak of the HD5 Sterndrive. Whether you enjoy a smooth ride or anchoring off the sandbar, she'll be ready. Quality amenities such as the self-bailing cockpit, stern lounge, and head compartment give this boat plenty of flexibility.

Deck plan

Deck layout

Color options

Hull color

Classic Navy

Crimson Red

Denim Blue

Liquid Blue

Jet Black

Phantom Grey

Elevate exterior

Elevate Jet Black/Crimson Red

Elevate Phantom Grey/Jet Black

Specifications

Length overall
  • 24'40"
  • 7.42 m
LOA w/ extended swim platform
  • 26'30"
  • 8 m
Hull length
  • 24'30"
  • 7.39 m
Beam
  • 8'50"
  • 2.54 m
CE Certification
  • C10
  • C10
Fuel capacity
  • 55 gal
  • 208 l
Water capacity
  • 12 gal
  • 45 l
Approx. Draft Up
  • 18"
  • 0.46 m
Approx. Draft Down
  • 30"
  • 0.89 m
Max capacity
  • 13
  • 13
Maximum Capacity
  • 2000 lbs
  • 907 kg
Displacement (w/o engine)
  • 3760 lbs
  • 1705 kg
Displacement w/ engine
  • 4860 lbs
  • 2200 kg
Max. engine power
  • 350 hp/cv
  • 350 hp/cv
Deadrise
  • 20 °
  • 20 °
Bridge Clearance
  • 4'80"
  • 1.42 m
Bridge Clearance w/ Arch or Tower
  • 7'70"
  • 2.31 m
Total height
  • 6'40"
  • 1.9 m
Total height on trailer
  • 8'1"
  • 2.46 m
Height on Trailer w/Wakeboard Tower Dn
  • 9'60"
  • 2.9 m
Height on Trailer w/Wakeboard Tower Up
  • 10'11"
  • 3.33 m
Trailer Weight Tandem Axle
  • 1505 lbs
  • 683 kg
Storage length on trailer
  • 24'1"
  • 7.57 m
Storage length on trailer with extended swim platform
  • 26'80"
  • 8.1 m

Standard features and options

Standard features

Stripe color
  • White
Solid hull
  • White
Hull and deck
  • Anchor locker w/ lid, latch & tie off
  • Bow rails, stainless steel
  • Bow & stern eyes, stainless steel
  • Cleats, fixed, stainless steel
  • Exterior color, all white
  • Exterior gel accent stripe, choice of color
  • Fiberglass stringer system
  • Horn
  • Ladder, bow, wide-step, hidden, telescoping
  • Ladder, stern, angled, deep-reach, hidden w/ wide steps
  • Meets applicable USCG & Canadian regs; NMMA certified using ABYC stds.
  • Navigation lights, LED
  • Port window, head
  • Rub rail w/ stainless steel insert
  • Stable-Vee® hull next generation
  • Swim platform, stern
  • Swim platform, bow
  • Thru-hull fittings, stainless steel
  • Winning edge owner protection plan
  • Windshield header, polished
  • Windshield w/walk-thru, full-height, curved glass, exclusive design
Tow Sports
  • Ski tow, stern, stainless steel
Cockpit
  • Assist handle(s), stainless steel
  • Beverage holder(s), stainless steel
  • Coaming pads w/ rich hand-fitted vinyl & comfort padding
  • Cooler(s), built-in
  • Cooler, carry-on
  • Courtesy lights, Blue LED
  • Fiberglass liner, skid-resistant, self-draining
  • Interior color scheme, choice of color
  • Seating, bow cushions, hinged
  • Seating, cockpit, U-shaped
  • Seating, ComfortRide, flip-up bucket bolster(s)
  • Self-bailing cockpit
  • Ski locker, in-floor, w/ gas-assist hinged lid & mat
  • Storage, bow & cockpit, beneath seats
  • Storage, bow, behind backrest at helm
  • Storage, cockpit, sidewall storage w/ beverage holders
  • Sun lounge, aft, convertible
  • Trash receptacle(s)
  • Upholstery, premium contoured vinyl w/ custom detailing
  • Walk-thru transom
  • Walk-thru transom door
  • Water intrusion management system
Helm
  • Custom gauges, fog-resistant
  • Dash, rich hand-wrapped vinyl, w/ custom detailing & LED accent lighting
  • Depth sounder
  • Emergency engine shut-off
  • Instrumentation, helm: multifunction gauges w/hour meter & GPS speed
  • Lighted switches, LED
  • Steering wheel, deluxe, tilt
Entertainment
  • Speakers, (4)
  • Stereo, w/ AM/FM radio, Bluetooth®
  • USB port(s)
Engine / Systems / Drive
  • Batteries dual w/ on-off switch
  • Battery(ies)
  • Bilge blower(s)
  • Bilge pump(s), automatic
  • Engine blower
  • Engine vents
  • Freshwater system
  • Outlet, 12V
  • Outlet, USB charge port(s)
  • Trim switch, power at transom
  • Wiring harness w/ sealed connectors and tin coating for corrosion resistance
Head / Changing Compartment
  • Changing room
  • Head, porta pottie, sink & light
Trailer
  • Four Winns® custom-matched trailer w/ brakes, tandem axle
  • Jack-stand, heavy-duty
  • Self-centering bunks
  • Submersible lighting, LED
  • Swing-away tongue
  • Wheels, aluminum

Other options

Stripe color
  • Classic Navy
  • Cognac
  • Crimson Red
  • Denim Blue
  • Liquid Blue
  • Jet Black
  • Phantom Grey
Hull color
  • Classic Navy
  • Crimson Red
  • Denim Blue
  • Liquid Blue
  • Jet Black
  • Phantom Grey
Solid hull
  • Classic Navy
  • Crimson Red
  • Denim Blue
  • Jet Black
  • Liquid Blue
  • Phantom Grey
Elevate exterior
  • Elevate Jet Black/Crimson Red
  • Elevate Phantom Grey/Jet Black
Power options
  • MerCruiser 6.2L 300 Bravo III DTS
  • MerCruiser 6.2L 300 Bravo III DTS ECT
  • MerCruiser 6.2L 350 Bravo III DTS
  • MerCruiser 6.2L 350 Bravo III DTS ECT
  • V8-300CE/DPS EVC 300HP
  • V8-350CE/DPS EVC 350hp
Standard Interior
  • Cognac
  • Lunar
  • Tropical
Elevate Interior Cool Touch®
  • Elevate Cool Touch Crimson Red
  • Elevate Cool Touch Jet Black
Hull and deck
  • Bow scuff plate, stainless steel
  • Cleats, pull-up, stainless steel
  • Docking lights, LED
  • Swim platform extended
  • Swim platform extended mat, latte (tan)
  • Swim platform extended mat, titanium (gray)
  • Swim platform mat(s), latte (tan)
  • Swim platform mat(s), titanium (grey)
  • Shower, transom & bow
  • Underwater lights, LED
  • Windlass w/rope, chain & anchor
Tow Sports
  • Board racks, pair, tower mount
  • Wakeboard tower, electric-assist hinging white, w/ bimini top
  • Wakeboard tower, hinging w/ gas-assist, w/ bimini top
  • Wakeboard tower, electric-assist hinging grey, w/ bimini top
Cockpit
  • Cushions, bow fill-in
  • Flooring, reed mat, ash (grey), removable
  • Flooring, reed mat, coconut (light grey), removable
  • Flooring, reed mat, lunar (Elevate Edition), removable
  • Table w/ mount(s), bamboo
  • Table(s) w/ mount
  • Walk-thru door(s)
Helm
  • GPS plotter
  • Steering wheel, premium upgrade, tilt
Entertainment
  • Stereo remote w/ display at transom
  • Tower speakers
Engine / Systems / Drive
  • Fire Extinguishing System
  • Trim tabs w/ LED indicators
Canvas
  • Bimini top
  • Cover, bow & cockpit (2-piece)
Head / Changing Compartment
  • Head, electric porcelain toilet
  • Head, porta pottie delete
  • Head, pump out
  • Head, wood floor
Trailer
  • Four Winns® custom-matched trailer, galvanized w/ GatorHyde®, brakes, tandem axle
  • Spare tire & wheel
  • Trailer delete

Packages

LX Package
  • Bimini top
  • Bow scuff plate, stainless steel
  • Cleats, pull-up, stainless steel
  • Flooring, reed mat, ash (grey) or coconut (light grey), removable
Premium Sound Package
  • Amplifier
  • Batteries dual w/ on-off switch
  • Lighting package, RGB
  • Cockpit speaker upgrade
  • Stereo remote at helm
  • Stereo remote w/ display at transom
  • Stereo upgrade
  • Subwoofer
  • Transom speakers
SLX Package
  • Cover, bow & cockpit (2-piece)
  • Cushions, bow fill-in
  • Docking lights, LED
  • Swim platform mat(s), latte (tan) or titanium (grey)
  • Table(s) w/ mount
  • Walk-thru doors

This information is for reference only, and the actual design, specifications, and options may vary from the photos and other information shown. Contact your dealer for more information.
For a complete list of features, options and available power, see an authorized Four Winns dealer for additional details.
