Discover the HD3 Surf

Four Winns

Take a cruise, lounge around, or shred the surf with the HD3 surf, designed with great attention to detail and equipped to relinquish beautiful wakes. With an exclusive forward engine and the Four Winns Surf Package to back it up, the HD3 Surf lives for precise waves and welcomes all types of boarders and surfers.

Deck plan

Top view

Color options

Hull color

Classic Navy

Crimson Red

Denim Blue

Liquid Blue

Jet Black

Phantom Grey

Elevate exterior

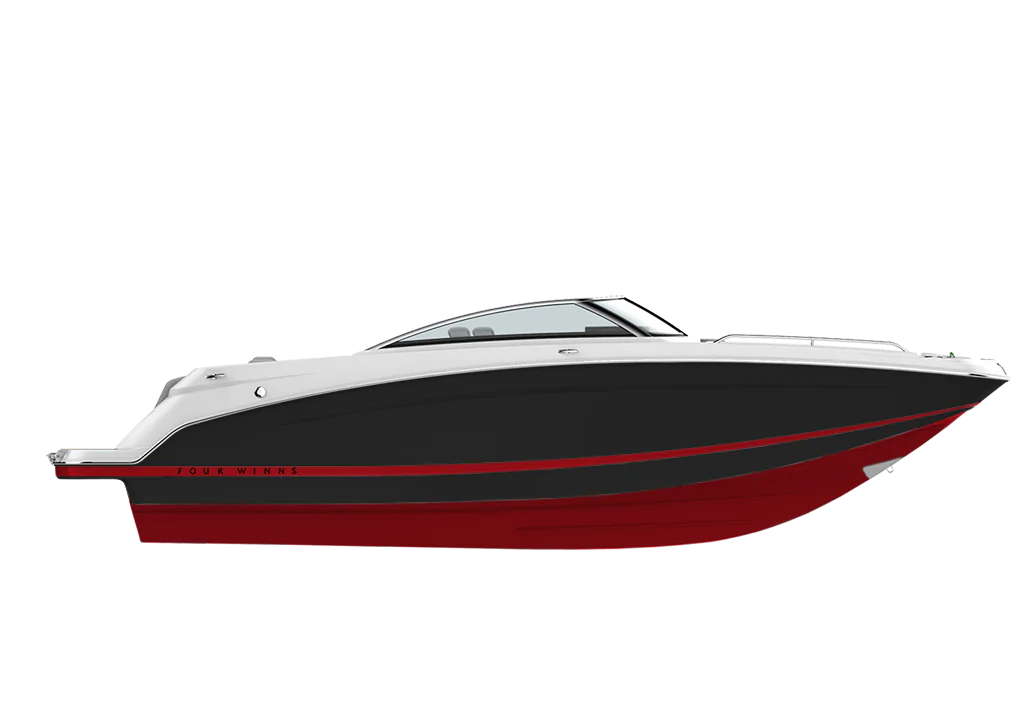

Elevate Jet Black/Crimson Red

Elevate Phantom Grey/Jet Black

Specifications

Length overall
  • 22'11"
  • 6.73 m
Hull length
  • 22'
  • 6.7 m
Beam
  • 8'50"
  • 2.54 m
CE Certification
  • C9
  • C9
Fuel capacity
  • 44 gal
  • 167 l
Water capacity
  • 12 gal
  • 45 l
Approx. Draft Up
  • 30"
  • 0.76 m
Approx. Draft Down
  • 35"
  • 0.89 m
Max capacity
  • 12
  • 12
Maximum Capacity
  • 1800 lbs
  • 816 kg
Displacement (w/o engine)
  • 3100 lbs
  • 1406 kg
Displacement w/ engine
  • 4170 lbs
  • 1891 kg
Max. engine power
  • 250 hp/cv
  • 250 hp/cv
Deadrise
  • 20 °
  • 20 °
Bridge Clearance
  • 4'90"
  • 1.4 m
Bridge Clearance w/ Arch or Tower
  • 7'70"
  • 2.3 m
Total height
  • 6'20"
  • 1.9 m
Total height on trailer
  • 7'1"
  • 2.4 m
Storage length on trailer
  • 23'20"
  • 7.1 m

Standard features and options

Standard features

Stripe color
  • White
Solid hull
  • White
Hull and deck
  • Anchor locker w/ lid, latch & tie off
  • Bow rails, stainless steel
  • Bow & stern eyes, stainless steel
  • Cleats, fixed, stainless steel
  • Exterior color, all white
  • Exterior gel accent stripe, choice of color
  • Fiberglass stringer system
  • Horn
  • Ladder, bow, wide-step, hidden, telescoping
  • Ladder, stern, angled, deep-reach, hidden w/ wide steps
  • Meets applicable USCG & Canadian regs; NMMA certified using ABYC stds.
  • Navigation lights, LED
  • Rub rail w/ stainless steel insert
  • Stable-Vee® hull next generation
  • Swim platform, stern
  • Swim platform, bow
  • Thru-hull fittings, stainless steel
  • Winning edge owner protection plan
  • Windshield header, polished
  • Windshield w/walk-thru, full-height, curved glass, exclusive design
Tow Sports
  • Ballast system
  • Ski tow, stern, stainless steel
  • Touch screen command center w/ speed control
  • Wake enhancement tabs
Cockpit
  • Beverage holder(s), stainless steel
  • Coaming pads w/ rich hand-fitted vinyl & comfort padding
  • Cooler, carry-on
  • Courtesy lights, Blue LED
  • Fiberglass liner, skid-resistant, self-draining
  • Interior color scheme, choice of color
  • Seating, bow cushions, hinged
  • Seating, cockpit, U-shaped
  • Seating, ComfortRide, flip-up bucket bolster(s)
  • Storage, bow & cockpit, beneath seats
  • Storage, cockpit, sidewall storage w/ beverage holders
  • Sun lounge, aft, convertible
  • Upholstery, premium contoured vinyl w/ custom detailing
  • Walk-thru transom
  • Walk-thru transom door
  • Water intrusion management system
Helm
  • Custom gauges, fog-resistant
  • Dash, rich hand-wrapped vinyl, w/ custom detailing & LED accent lighting
  • Depth sounder
  • Emergency engine shut-off
  • Instrumentation, helm: Medallion® touch screen, integrated gauges and cruise control
  • Lighted switches, LED
  • Steering wheel, deluxe, tilt
Entertainment
  • Speakers, (4)
  • Stereo, w/ AM/FM radio, Bluetooth®
Engine / Systems / Drive
  • Battery(ies)
  • Bilge blower(s)
  • Bilge pump(s), automatic
  • Engine blower
  • Engine vents
  • Outlet, 12V
  • Outlet, USB charge port(s)
  • Trim switch, power at transom
  • Wiring harness w/ sealed connectors and tin coating for corrosion resistance
Head / Changing Compartment
  • Changing room
Trailer
  • Four Winns® custom-matched trailer w/ brakes, tandem axle
  • Jack-stand, heavy-duty
  • Self-centering bunks
  • Submersible lighting, LED
  • Swing-away tongue
  • Wheels, aluminum

Other options

Stripe color
  • Classic Navy
  • Cognac
  • Crimson Red
  • Denim Blue
  • Liquid Blue
  • Jet Black
  • Phantom Grey
Hull color
  • Classic Navy
  • Crimson Red
  • Denim Blue
  • Liquid Blue
  • Jet Black
  • Phantom Grey
Solid hull
  • Classic Navy
  • Crimson Red
  • Denim Blue
  • Jet Black
  • Liquid Blue
  • Phantom Grey
Elevate exterior
  • Elevate Jet Black/Crimson Red
  • Elevate Phantom Grey/Jet Black
Power options
  • MerCruiser 6.2L 300 Bravo IVS DTS ECT FFD
  • V8-300CE/FWD EVC 300HP
Standard Interior
  • Cognac
  • Lunar
  • Tropical
Elevate Interior Cool Touch®
  • Elevate Cool Touch Crimson Red
  • Elevate Cool Touch Jet Black
Hull and deck
  • Bow scuff plate, stainless steel
  • Cleats, pull-up, stainless steel
  • Docking lights, LED
  • Swim platform extended
  • Swim platform extended mat, latte (tan)
  • Swim platform extended mat, titanium (gray)
  • Swim platform mat(s), latte (tan)
  • Swim platform mat(s), titanium (grey)
  • Swim patform mat w/extended, "SURF" Edition
  • Swim platform Mat, "SURF" Edition
  • Underwater lights, LED
  • Windlass w/rope, chain & anchor
Tow Sports
  • Board racks, pair, tower mount
  • Wakeboard tower, electric-assist hinging white, w/ bimini top
  • Wakeboard tower, hinging w/ gas-assist, w/ bimini top
  • Wakeboard tower, electric-assist hinging grey, w/ bimini top
Cockpit
  • Cushions, bow fill-in
  • Flooring, reed mat, ash (grey), removable
  • Flooring, reed mat, coconut (light grey), removable
  • Flooring, reed mat, lunar (Elevate Edition), removable
  • Table w/ mount(s), bamboo
  • Table(s) w/ mount
  • Walk-thru door(s)
Helm
  • GPS plotter
  • Steering wheel, premium upgrade, tilt
Entertainment
  • Stereo remote w/ display at transom
  • Tower speakers
Engine / Systems / Drive
  • Batteries dual w/ on-off switch
  • Battery single w/ on-off switch
  • Fire Extinguishing System
Canvas
  • Bimini top
  • Cover, bow & cockpit (2-piece)
Head / Changing Compartment
  • Head, porta pottie & light
  • Head, pump out
Trailer
  • Four Winns® custom-matched trailer, galvanized w/ GatorHyde®, brakes, tandem axle
  • Spare tire & wheel
  • Trailer delete

Packages

LX Package
  • Bimini top
  • Bow scuff plate, stainless steel
  • Cleats, pull-up, stainless steel
  • Flooring, reed mat, ash (grey) or coconut (light grey), removable
Premium Sound Package
  • Amplifier
  • Batteries dual w/ on-off switch
  • Lighting package, RGB
  • Cockpit speaker upgrade
  • Stereo remote at helm
  • Stereo remote w/ display at transom
  • Stereo upgrade
  • Subwoofer
  • Transom speakers
SLX Package
  • Cover, bow & cockpit (2-piece)
  • Cushions, bow fill-in
  • Docking lights, LED
  • Swim platform mat(s), latte (tan) or titanium (grey)
  • Table(s) w/ mount
  • Walk-thru doors

This information is for reference only, and the actual design, specifications, and options may vary from the photos and other information shown. Contact your dealer for more information.
For a complete list of features, options and available power, see an authorized Four Winns dealer for additional details.
