Discover the H2 OB

Four Winns

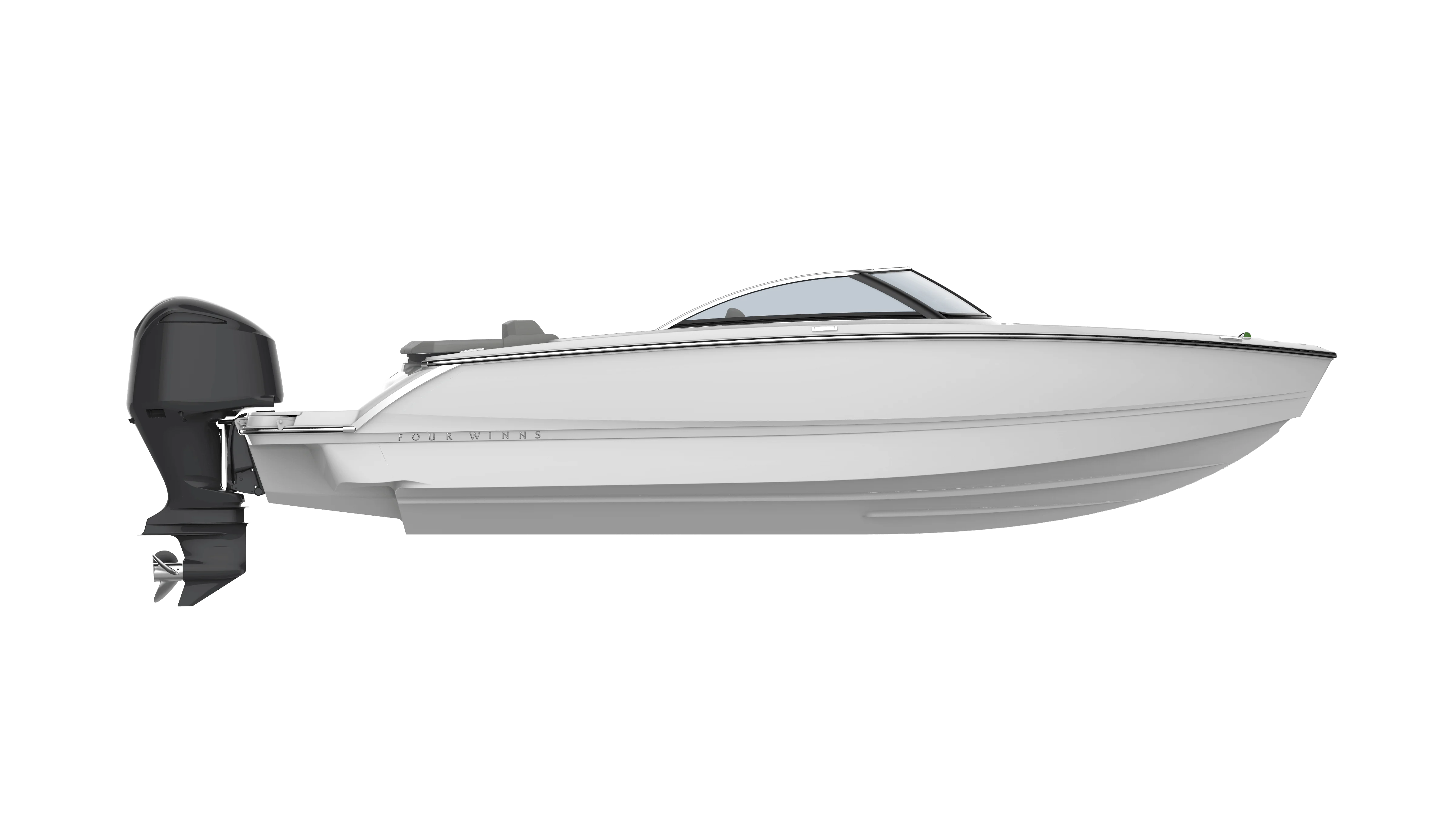

The H2 Outboard, a versatile and stylish boat designed to deliver memorable on-water moments. This model offers agile handling and exhilirating performance combined with a sleek design.

Deck plan

Deck Layout

Color options

Hull side

Classic Navy

Crimson Red

Denim Blue

Liquid Blue

Jet Black

Phantom Grey

Elevate exterior package

Elevate Jet Black/Crimson Red

Elevate Phantom Grey/Jet Black

Specifications

Length overall
  • 22'
  • 6.71 m
Hull length
  • 21'90"
  • 6.62 m
Beam
  • 8'50"
  • 2.54 m
CE Certification
  • C9
  • C9
Fuel capacity
  • 40 gal
  • 151 l
Water capacity
  • 12 gal
  • 45 l
Approx. Draft Up
  • 18"
  • 0.46 m
Approx. Draft Down
  • 35"
  • 0.89 m
Persons capacity
  • 9
  • 9
Maximum Capacity
  • 2465 lbs
  • 1118 kg
Lightship Displacement (w/o engine)
  • 3500 lbs
  • 1585 kg
Lightship Displacement (w/ engine)
  • 4100 lbs
  • 1860 kg
Max. engine power
  • 250 hp/cv
  • 250 hp/cv
Deadrise
  • 18 °
  • 18 °
Bridge Clearance
  • 4'
  • 1.22 m
Bridge Clearance w/ Arch or Tower
  • 6'11"
  • 2.11 m
Total height
  • 5'60"
  • 1.68 m
Total height on trailer
  • 7'20"
  • 2.18 m
Height on Trailer w/Wakeboard Tower Dn
  • 8'1"
  • 2.7 m
Height on Trailer w/Wakeboard Tower Up
  • 10'1"
  • 3.07 m
Trailer weight single axe
  • 1000 lbs
  • 454 kg
Storage length on trailer
  • 22'80"
  • 6.95 m

Standard features and options

Available as standard

Stripe color
  • White
Integral hull
  • White
Cockpit color choices
  • Lunar
Hull and deck
  • Anchor locker w/ lid, latch & tie off
  • Bow & stern eyes, stainless steel
  • Cleats, fixed, stainless steel
  • Exterior color, all white
  • Exterior gel accent stripe, choice of color
  • Fiberglass stringer system
  • Horn
  • Ladder, stern, angled, deep-reach, hidden w/ wide steps
  • Meets applicable USCG & Canadian regs; NMMA certified using ABYC stds.
  • Navigation lights, LED
  • Rub rail w/ stainless steel insert
  • Stable-Vee® hull next generation
  • Swim platform, stern
  • Thru-hull fittings, stainless steel
  • Winning edge owner protection plan
  • Windshield header, polished
  • Windshield w/walk-thru, full-height, curved glass, exclusive design
Cockpit
  • Assist handle(s), stainless steel, vinyl wrapped
  • Beverage holder(s), stainless steel
  • Coaming pads w/ rich hand-fitted vinyl & comfort padding
  • Cooler, carry-on
  • Cooler, carry-on, cockpit basement, 72qt.
  • Courtesy lights, Blue LED
  • Fiberglass liner, skid-resistant, self-draining
  • Interior color scheme, choice of color
  • Port console, glove box
  • Seating, bow cushions, hinged
  • Seating, cockpit, U-shaped
  • Seating, ComfortRide, flip-up bucket bolster(s)
  • Ski locker, in-floor, w/ gas-assist hinged lid & mat
  • Storage, aft, cockpit basement
  • Storage, beneath sundeck, mesh bags
  • Storage, bow & cockpit, beneath seats
  • Storage, cockpit, sidewall storage w/ beverage holders
  • Sundeck, aft w/ chaise lounge
  • Trash receptacle(s)
  • Upholstery, premium contoured vinyl w/ custom detailing
  • Walk-thru transom
  • Water intrusion management system
Helm
  • Dash, rich hand-wrapped vinyl, w/ custom detailing & LED accent lighting
  • Depth sounder
  • Emergency engine shut-off
  • Instrumentation, helm: touch screen, integrated gauges and GPS speed
  • Lighted switches, LED
  • Steering wheel, deluxe, tilt
  • Phone charger/holder, wireless
Entertainment
  • Speakers, (4)
  • Stereo, w/ AM/FM radio, Bluetooth®
  • USB port(s)
Engine / Systems / Drive
  • Battery single w/ on-off switch
  • Battery(ies)
  • Bilge pump(s), automatic
  • Hydraulic tilt steering
  • Outlet, 12V
  • Outlet, USB charge port(s)
  • Wiring harness w/ sealed connectors and tin coating for corrosion resistance
Trailer
  • Four Winns® custom-matched trailer w/ brakes, tandem axle
  • Jack-stand, heavy-duty
  • Self-centering bunks
  • Submersible lighting, LED
  • Swing-away tongue
  • Wheels, aluminum

Other options

Stripe color
  • Classic Navy
  • Cognac
  • Crimson Red
  • Denim Blue
  • Liquid Blue
  • Jet Black
  • Phantom Grey
Hull side
  • Classic Navy
  • Crimson Red
  • Denim Blue
  • Liquid Blue
  • Jet Black
  • Phantom Grey
Integral hull
  • Classic Navy
  • Crimson Red
  • Denim Blue
  • Jet Black
  • Liquid Blue
  • Phantom Grey
Elevate exterior package
  • Elevate Jet Black/Crimson Red
  • Elevate Phantom Grey/Jet Black
Engines
  • 150XL FourStroke
  • 200XL FourStroke DTS
  • 250XL Verado
  • 250XL Verado White
  • 150 XC
  • F200XC
  • F250XB
  • F250XCB Digital
Cockpit color choices
  • Cognac
  • Tropical
Elevate Interior Cool Touch®
  • Elevate Cool Touch Crimson Red
  • Elevate Cool Touch Jet Black
Hull and deck
  • Bow scuff plate, stainless steel
  • Cleats, pull-up, stainless steel
  • Docking lights, LED
  • Fender Hooks, Quick Connect
  • Swim platform mat(s), latte (tan)
  • Swim platform mat(s), titanium (grey)
  • Shower, transom
  • Underwater lights, LED
  • Windlass w/rope, chain & anchor
Tow sports accessories
  • Board racks, pair, tower mount
  • Ski tow pylon, removable
  • Wakeboard tower, electric-assist hinging white, w/ bimini top
  • Wakeboard tower, hinging w/ gas-assist, w/ bimini top
  • Wakeboard tower, electric-assist hinging grey, w/ bimini top
Cockpit
  • Cushions, bow fill-in
  • Flooring, reed mat, ash (grey), removable
  • Flooring, Reed Mat, Coconut (light grey), removable
  • Rod holder, stainless steel, aft
  • Table w/ mount(s), bamboo
  • Table(s) w/ mount
  • Walk-thru door(s)
Helm
  • GPS plotter
  • Steering wheel, premium upgrade, tilt
Entertainment
  • Stereo remote w/ display at transom
  • Tower speakers
Engine / Systems / Drive
  • Batteries dual w/ on-off switch
  • Battery charger
  • Power steering (200 4S only)
  • Trim tabs w/ LED indicators
  • Yamaha Digital Electric Steering (DES) (available with Yamaha XCB only)
  • Yamaha Power assisted steering (select engines only)
Canvas
  • Bimini top w/ changing room
  • Cover, bow & cockpit (2-piece)
  • Sail shade, cockpit
Trailer
  • Without trailer

Packages

LX Package
  • Bimini top w/ changing room
  • Bow scuff plate, stainless steel
  • Cleats, pull-up, stainless steel
  • Flooring, reed mat, ash (grey) or coconut (light grey), removable
Premium Sound Package
  • Amplifier
  • Batteries dual w/ on-off switch
  • Lighting package, RGB
  • Cockpit speaker upgrade
  • Stereo remote w/ display at transom
  • Stereo upgrade
  • Subwoofer
SLX Package
  • Cover, bow & cockpit (2-piece)
  • Cushions, bow fill-in
  • Docking lights, LED
  • Swim platform mat(s), latte (tan) or titanium (grey)
  • Table(s) w/ mount
  • Walk-thru doors

This information is for reference only, and the actual design, specifications, and options may vary from the photos and other information shown. Contact your dealer for more information.
For a complete list of features, options and available power, see an authorized Four Winns dealer for additional details.
