Versatile and stylish boat

The H2 Outboard, a versatile and stylish boat designed to deliver memorable on-water moments. This model offers agile handling and exhilirating performance combined with a sleek design.

Length overall: 22' / 6.71 m
Beam: 8'4" / 2.54 m
CE Certification: C9
Persons capacity: 9

SIGNATURE STYLE

The H-Series embodies a refined, distinctive aesthetic, and the H2 OB is a perfect reflection of it. With its near-vertical stem, sculpted curves, and elegantly arched windshield, it captures the unmistakable essence of Four Winns design.

EXCEPTIONAL CRAFTSMANSHIP

The H2 OB blends meticulously selected hand-sewn fabrics and rich textures with precision craftsmanship, ensuring a flawless and sophisticated finish.

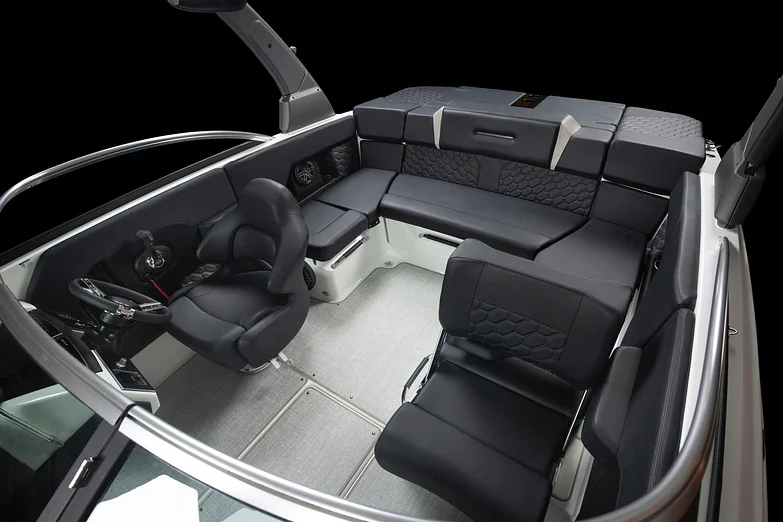

SMARTLY DESIGNED COCKPIT

The H2 OB features a versatile U-shaped cockpit with a flip seat, creating a spacious and inviting setting for socializing and relaxation. Thoughtful storage solutions keep essentials within reach without compromising space. Every detail is designed to enhance comfort and maximize enjoyment on the water.

Media gallery

Choose your style

Technical specifications

Deck Layout

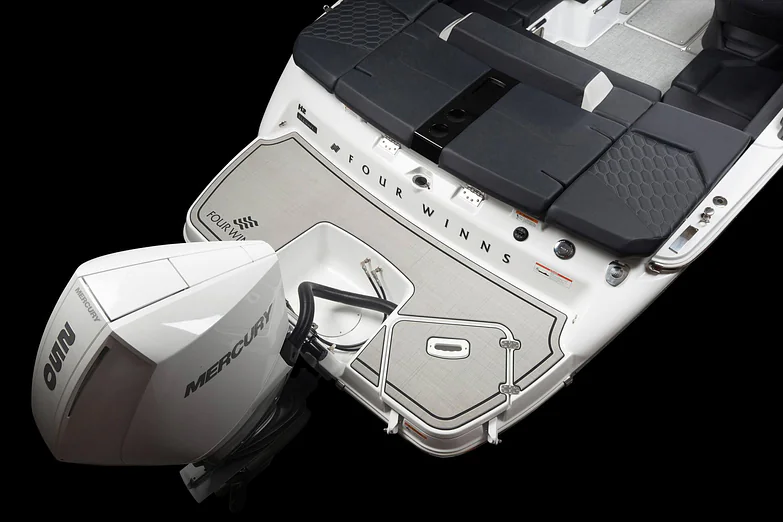

1. Swimming platform

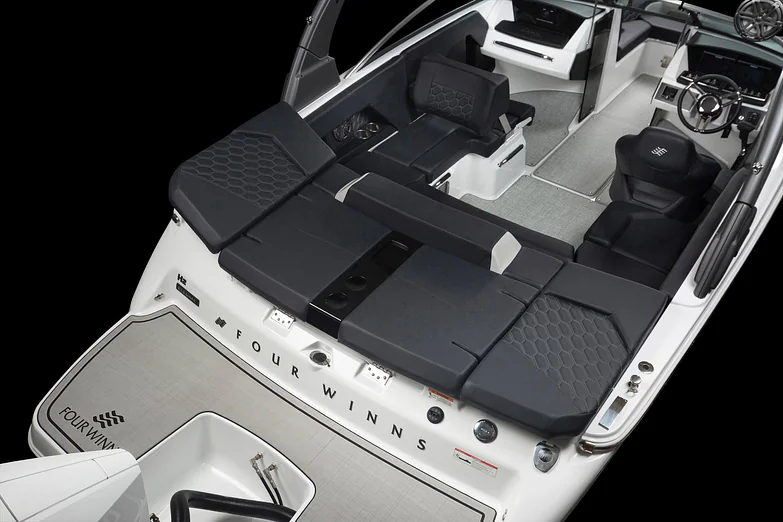

2. Large sunpad
3. Storages
4. Trash receptacle
5. Cup holders
6. Windlass (optional)

Specifications

Length overall: 22'

6.71 m
Hull length: 21'9"

6.62 m
Beam: 8'4"

2.54 m
CE Certification: C9

C9
Fuel capacity: 40 gal

151 l
Water capacity: 12 gal

45 l
Approx. Draft Up: 1'6"

0.46 m
Approx. Draft Down: 2'11"

0.89 m
Persons capacity: 9

9
Maximum Capacity: 2465 lbs

1118 kg
Lightship Displacement (w/o engine): 3500 lbs

1585 kg
Lightship Displacement (w/ engine): 4100 lbs

1860 kg
Max. engine power: 250 hp/cv

250 hp/cv
Deadrise: 18 °

18 °
Bridge Clearance: 4'

1.22 m
Bridge Clearance w/ Arch or Tower: 6'11"

2.11 m
Total height: 5'6"

1.68 m
Total height on trailer: 7'2"

2.18 m
Height on Trailer w/Wakeboard Tower Dn: 8'10"

2.70 m
Height on Trailer w/Wakeboard Tower Up: 10'1"

3.07 m
Trailer weight single axe: 1000 lbs

454 kg
Storage length on trailer: 22'9"

6.95 m

Standard features

Stripe color

White

Solid Hull Color

White

Cockpit color choices

Lunar

Hull and deck

Anchor locker w/ lid, latch & tie off
Bow & stern eyes, stainless steel
Cleats, fixed, stainless steel
Exterior color, all white
Exterior gel accent stripe, choice of color
Fiberglass stringer system
Horn
Ladder, stern, angled, deep-reach, hidden w/ wide steps
Meets applicable USCG & Canadian regs; NMMA certified using ABYC stds.
Navigation lights, LED
Rub rail w/ stainless steel insert
Stable-Vee® hull next generation
Swim platform, stern
Thru-hull fittings, stainless steel
Winning edge owner protection plan
Windshield header, polished

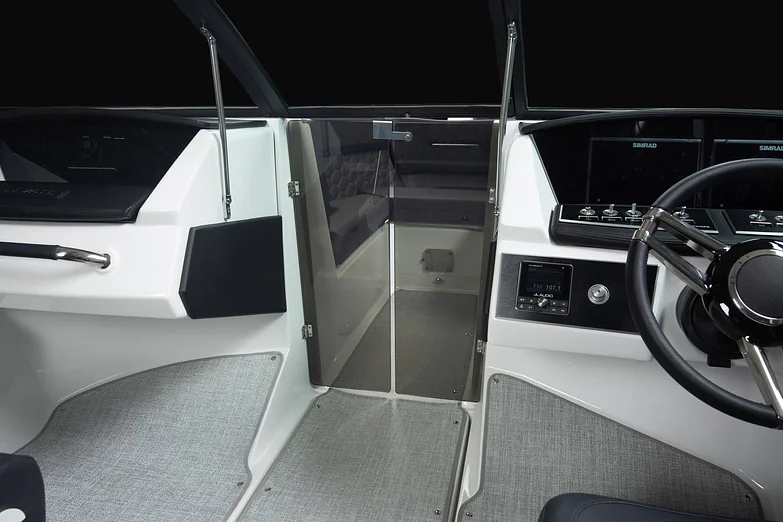

Windshield w/walk-thru, full-height, curved glass, exclusive design

Cockpit

Assist handle(s), stainless steel, vinyl wrapped
Beverage holder(s), stainless steel
Coaming pads w/ rich hand-fitted vinyl & comfort padding
Choice of standard upholstery color
Cooler, carry-on
Cooler, carry-on, cockpit basement, 72qt.
Courtesy lights, Blue LED
Fiberglass liner, skid-resistant, self-draining
Interior color scheme, choice of color

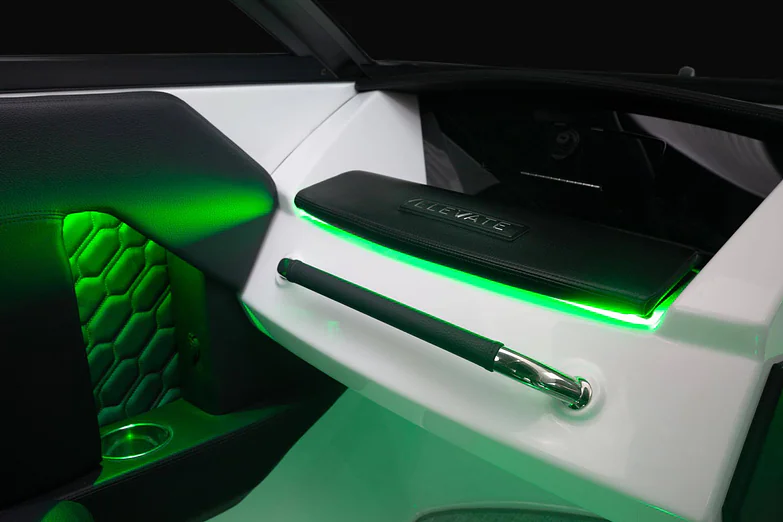

Port console, glove box

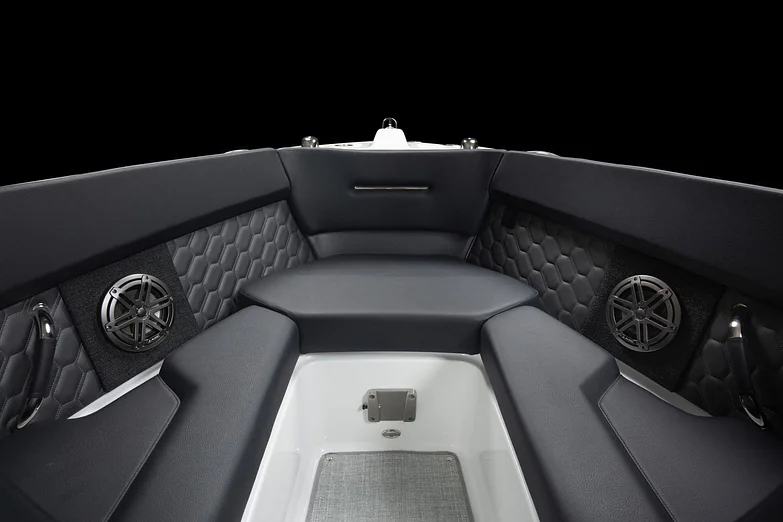

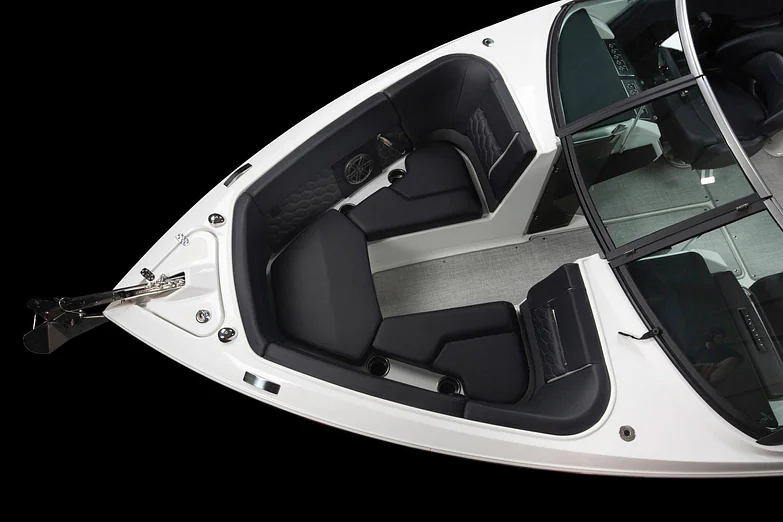

Seating, bow cushions, hinged
Seating, cockpit, U-shaped

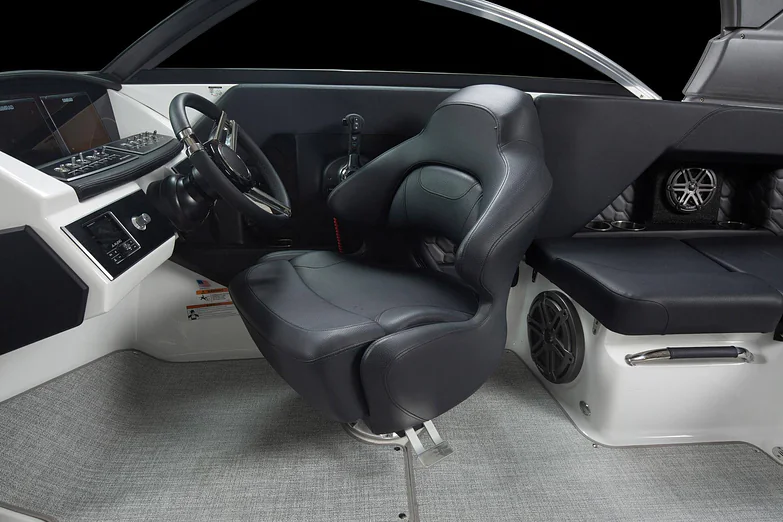

Seating, ComfortRide, flip-up bucket bolster(s)

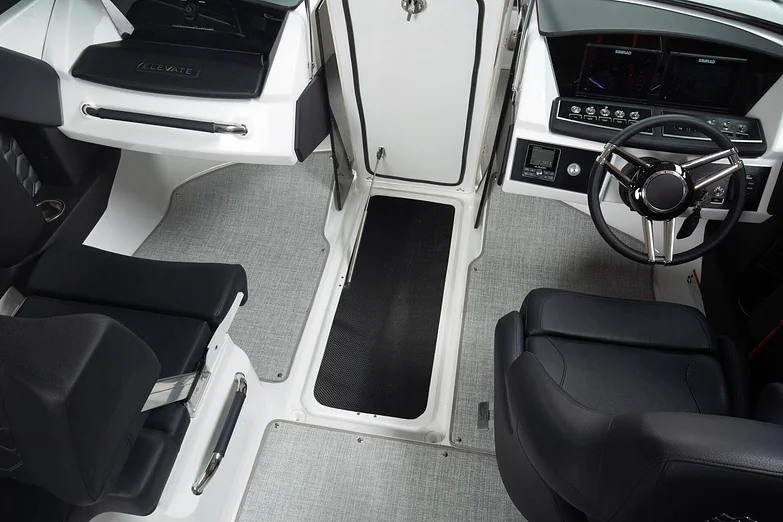

Ski locker, in-floor, w/ gas-assist hinged lid & mat
Storage, aft, cockpit basement
Storage, beneath sundeck, mesh bags
Storage, bow & cockpit, beneath seats
Storage, cockpit, sidewall storage w/ beverage holders
Sundeck, aft w/ chaise lounge
Trash receptacle(s)
Upholstery, premium contoured vinyl w/ custom detailing
Walk-thru transom
Water intrusion management system

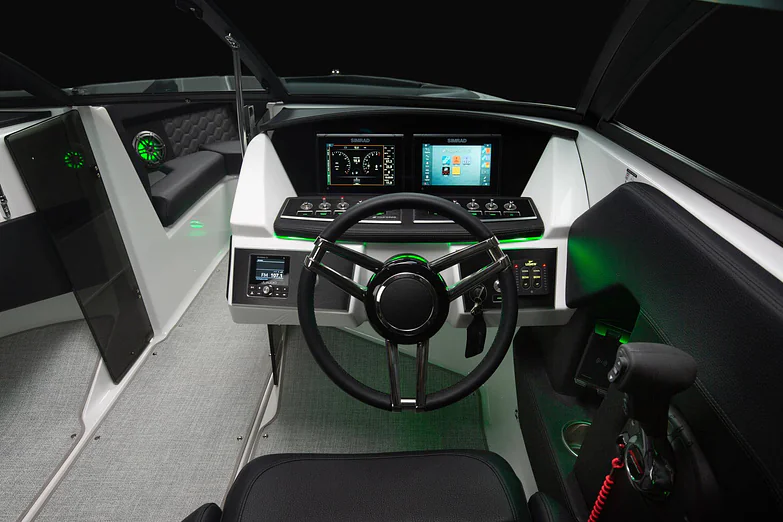

Helm

Dash, rich hand-wrapped vinyl, w/ custom detailing & LED accent lighting
Depth sounder
Emergency engine shut-off

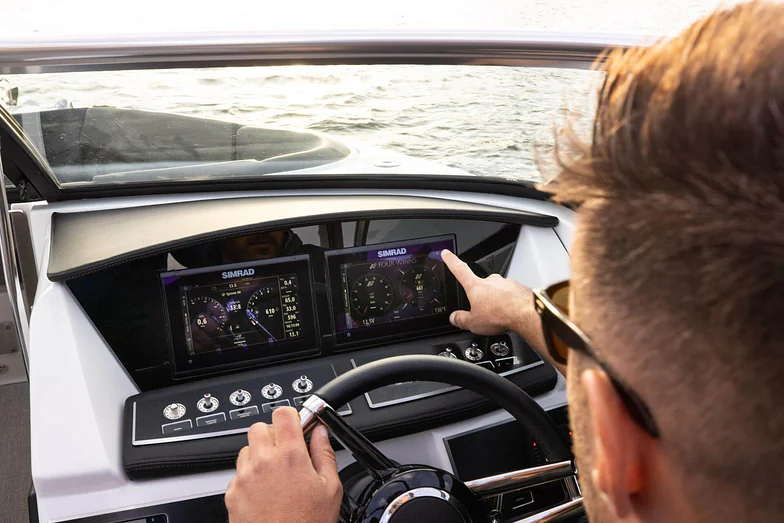

Instrumentation, helm: touch screen, integrated gauges and GPS speed
Lighted switches, LED
Steering wheel, deluxe, tilt
Phone charger/holder, wireless

Entertainment

Speakers, (4)
Stereo, w/ AM/FM radio, Bluetooth®
USB port(s)

Engine / Systems / Drive

Battery single w/ on-off switch
Battery(ies)
Bilge pump(s), automatic
Hydraulic tilt steering
Outlet, 12V
Outlet, USB charge port(s)
Wiring harness w/ sealed connectors and tin coating for corrosion resistance

Trailer

Four Winns® custom-matched trailer w/ brakes, tandem axle
Jack-stand, heavy-duty
Self-centering bunks
Submersible lighting, LED
Swing-away tongue
Wheels, aluminum

Print specs sheet Compare Receive the brochure Request a quote Configure

The Four Winns guarantee

For over 40 years, we've developed a reputation for doing the little things right. For our owners, this translates into many years of hassle-free boating. When the time comes to trade up your Four Winns, the warranty is transferable*, resulting in higher resale values.
