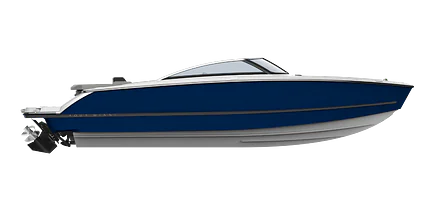

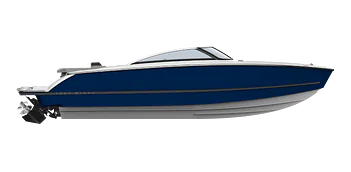

H4 OB
Expand your horizons with versatility and style.
The H4 Outboard ensures an efficient and smooth ride while maximizing onboard space. Whether cruising, entertaining, or embracing watersports, this model delivers unmatched versatility with timeless sophistication.
- Length overall
- 23'11" / 7.3 m
- Beam
- 8'50" / 2.54 m
- CE Certification
- C10
- Persons capacity
- 10
.jpg)
The H-Series captivates with its iconic vertical bow stem. The refined cross-curve windshield integrates a bold black pillar and a bright header, while the extended side wings accentuate its aerodynamic elegance, embodying a truly unique design language.

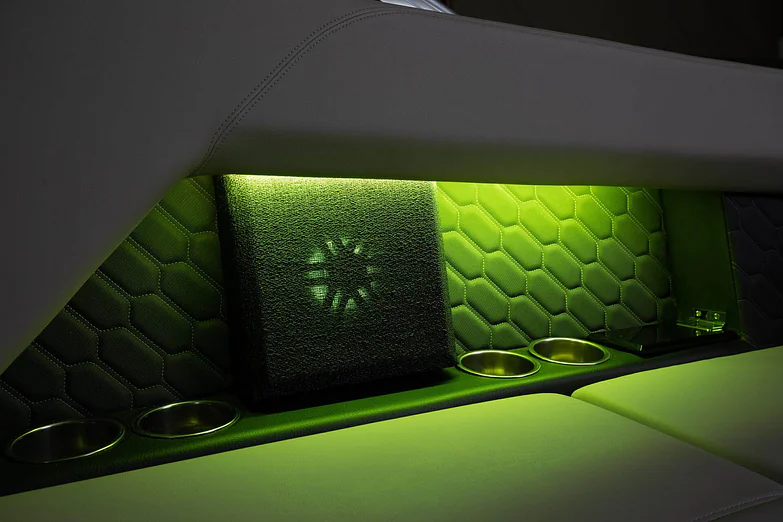

Every detail of the H4 has been meticulously designed to embody a premium aesthetic. From soft, grippy swim platform mats to woven cockpit flooring, these finishing touches exude refinement. True to Four Winns' legacy of superior craftsmanship, the H4 features intricate hand-sewn stitching, gleaming metal accents, and plush foam for unparalleled quality and comfort. Monochromatic color schemes introduce a fresh, streamlined look, while high-end materials like cool-touch vinyl-wrapped handles, durable upholstery, and padded bow walls blend durability with effortless style.
.jpg)

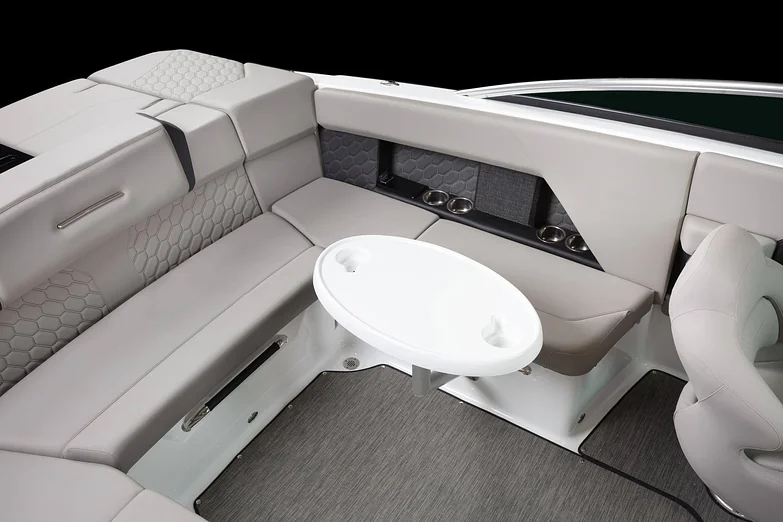

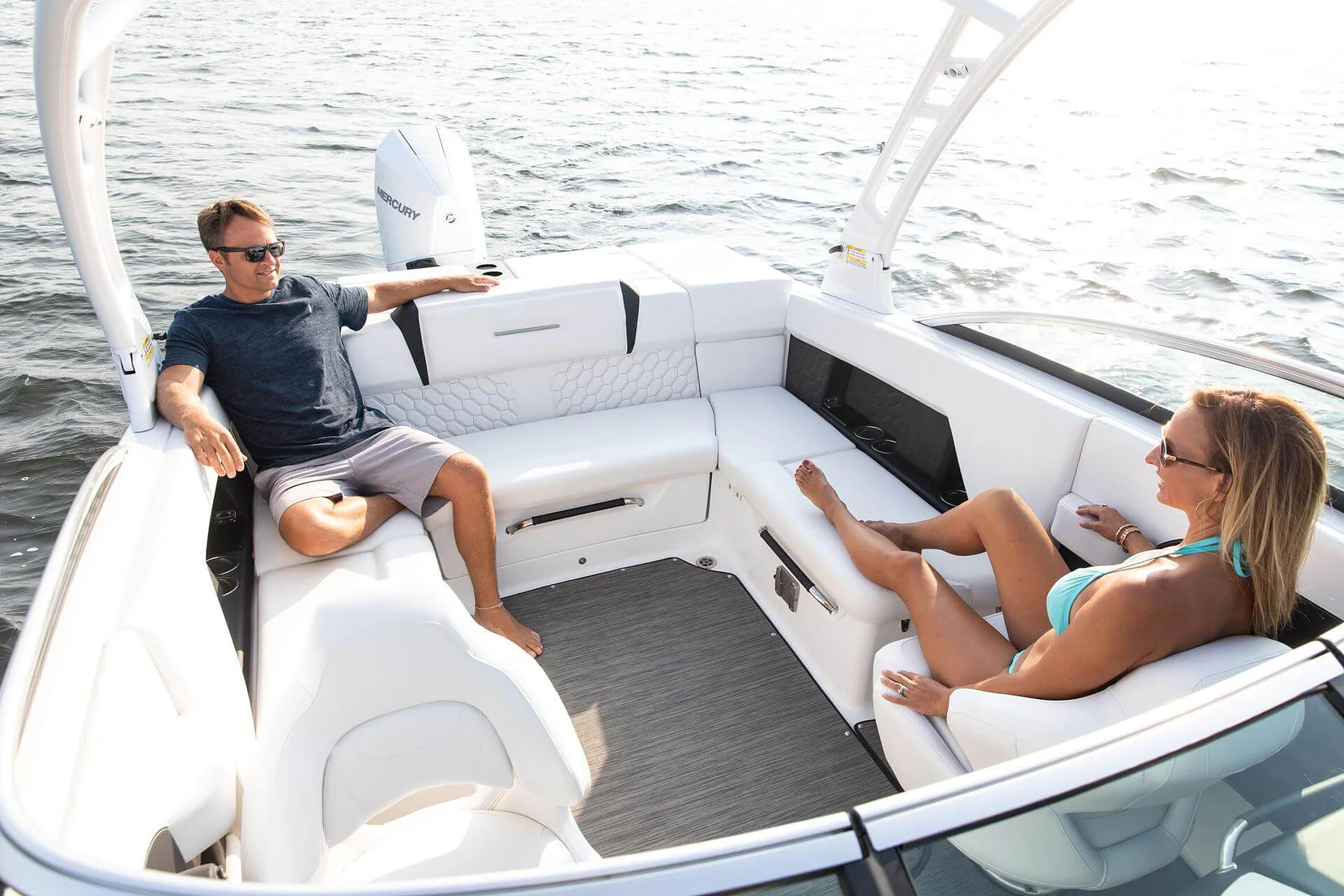

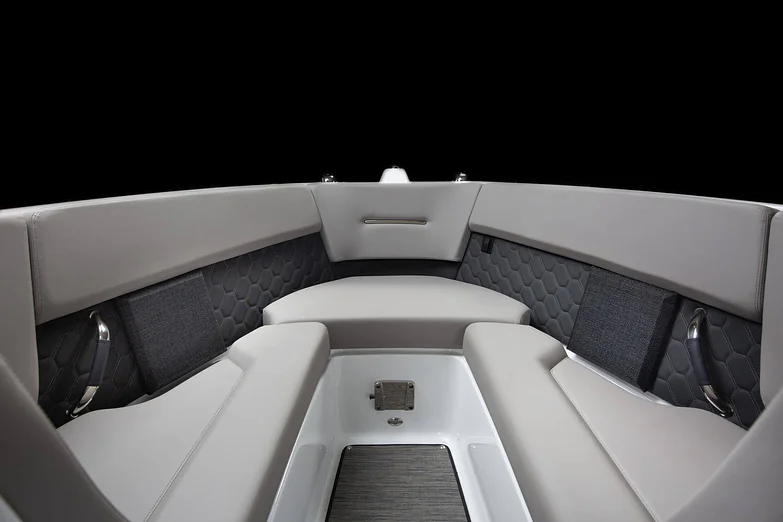

The H4 is designed with a sophisticated U-shaped cockpit, featuring a multifunctional flip seat that adapts effortlessly to any activity. Its spacious layout invites relaxation and social interaction, while discreet storage beneath the seating ensures practicality without compromising elegance or comfort.
Media gallery
.jpg)
%20(1).jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Choose your style
Virtual tour
Loading the virtual tour
Technical specifications
Specifications
- Length overall
-
- 23'11"
- 7.3 m
- LOA w/ engine
-
- 27'11"
- 8.51 m
- Beam
-
- 8'50"
- 2.54 m
- CE Certification
-
- C10
- C10
- Fuel capacity
-
- 52 gal
- 197 l
- Water capacity
-
- 12 gal
- 45 l
- Approx. Draft Up
-
- 18"
- 0.46 m
- Approx. Draft Down
-
- 35"
- 0.89 m
- Persons capacity
-
- 10
- 10
- Maximum Capacity
-
- 2625 lbs
- 1190 kg
- Lightship Displacement (w/o engine)
-
- 3600 lbs
- 1542 kg
- Lightship Displacement (w/ engine)
-
- 4200 lbs
- 1814 kg
- Max. engine power
-
- 300 hp/cv
- 300 hp/cv
- Deadrise
-
- 18 °
- 18 °
- Bridge Clearance
-
- 4'
- 1.22 m
- Bridge Clearance w/ Arch or Tower
-
- 6'11"
- 2.11 m
- Total height
-
- 5'60"
- 1.68 m
- Total height on trailer
-
- 7'20"
- 2.18 m
- Height on Trailer w/Wakeboard Tower Dn
-
- 8'1"
- 2.7 m
- Height on Trailer w/Wakeboard Tower Up
-
- 10'1"
- 3.07 m
- Trailer Weight Tandem Axle
-
- 1271 lbs
- 577 kg
- Storage length on trailer
-
- 24'11"
- 7.59 m
- Storage length on trailer (with engine)
-
- 28'11"
- 8.81 m
Standard features
- Stripe color
-
- White
- Integral hull
-
- White
- Cockpit color choices
-
- Cognac
- Hull and deck
-

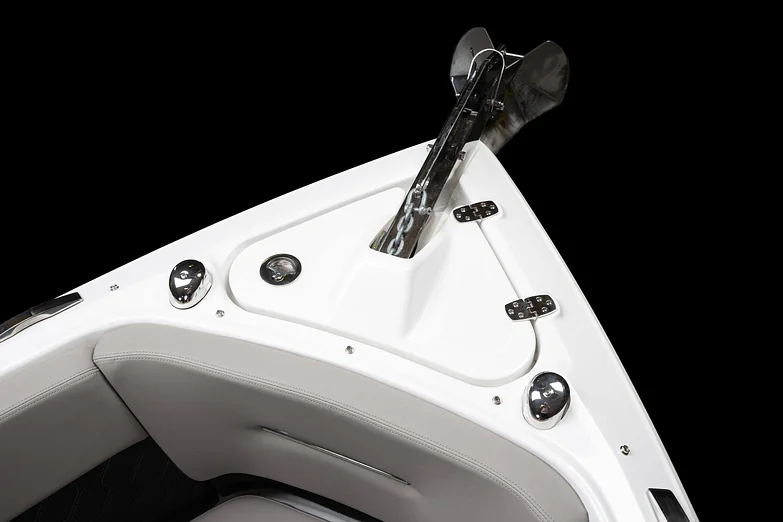

- Anchor locker w/ lid, latch & tie off
- Bow & stern eyes, stainless steel
- Cleats, fixed, stainless steel
- Exterior color, all white
- Exterior gel accent stripe, choice of color
- Fiberglass stringer system
- Horn
- Ladder, stern, angled, deep-reach, hidden w/ wide steps
- Meets applicable USCG & Canadian regs; NMMA certified using ABYC stds.
- Navigation lights, LED
- Rub rail w/ stainless steel insert
- Stable-Vee® hull next generation

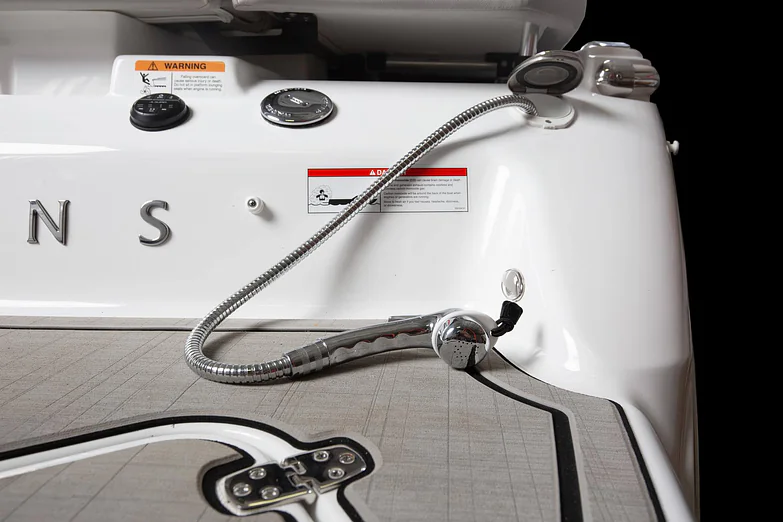

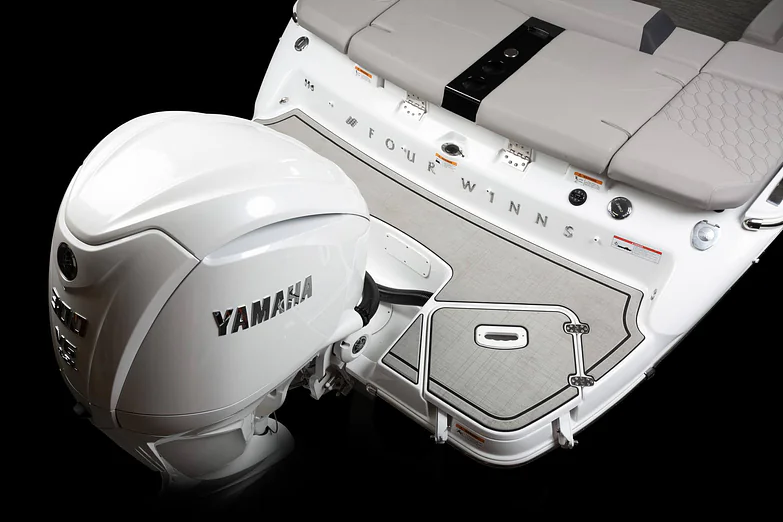

- Swim platform, stern
- Thru-hull fittings, stainless steel
- Winning edge owner protection plan
- Windshield header, polished

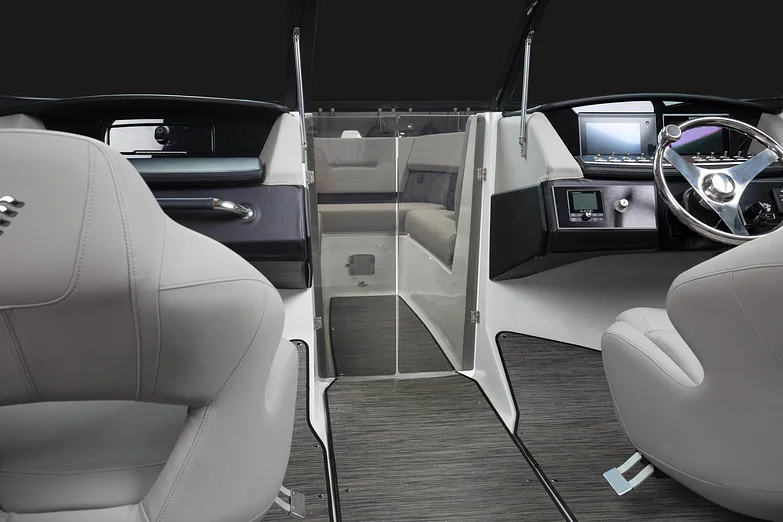

- Windshield w/walk-thru, full-height, curved glass, exclusive design
- Cockpit
-
- Assist handle(s), stainless steel, vinyl wrapped
- Beverage holder(s), stainless steel
- Coaming pads w/ rich hand-fitted vinyl & comfort padding
- Choice of standard upholstery color

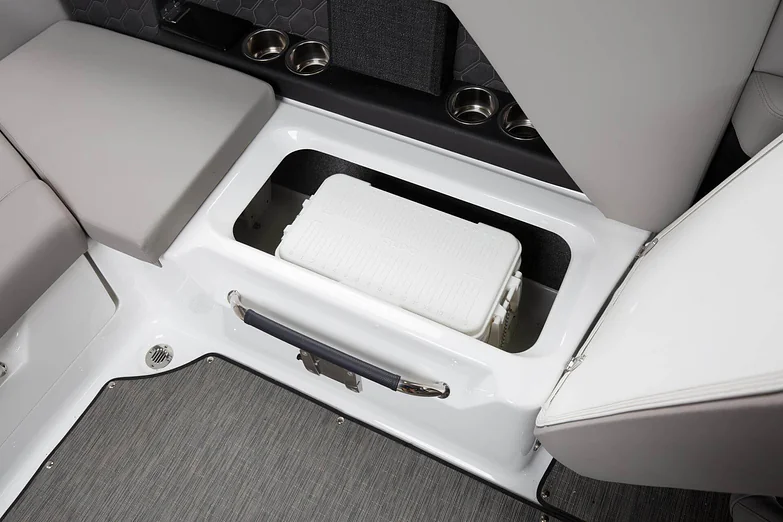

- Cooler, carry-on
- Courtesy lights, Blue LED
- Fiberglass liner, skid-resistant, self-draining
- Interior color scheme, choice of color

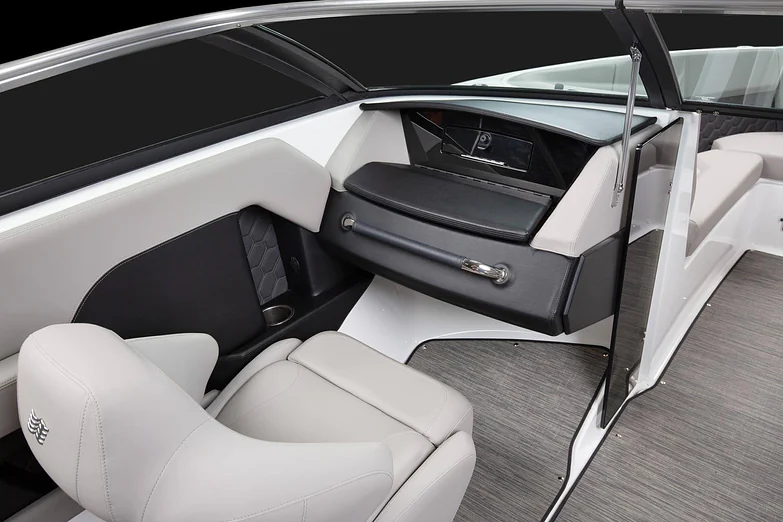

- Port console, glove box

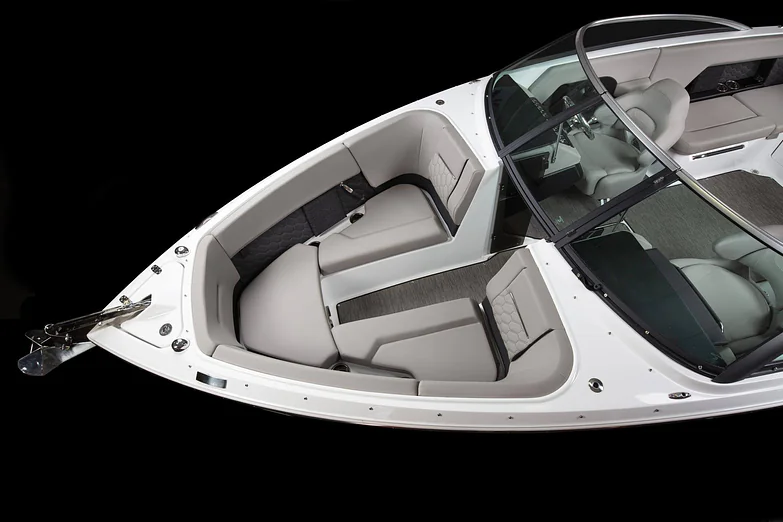

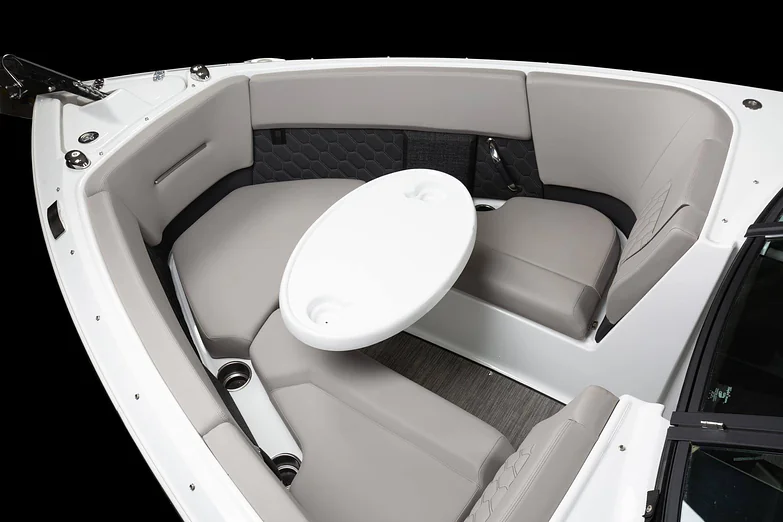

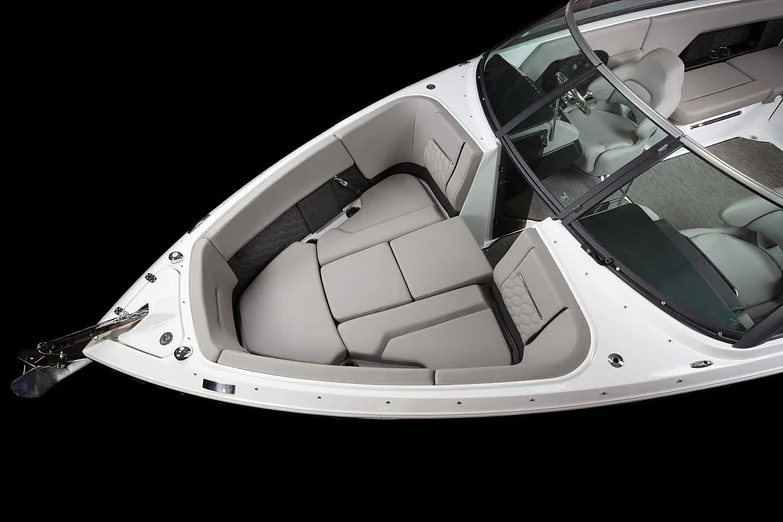

- Seating, bow cushions, hinged
- Seating, cockpit, U-shaped

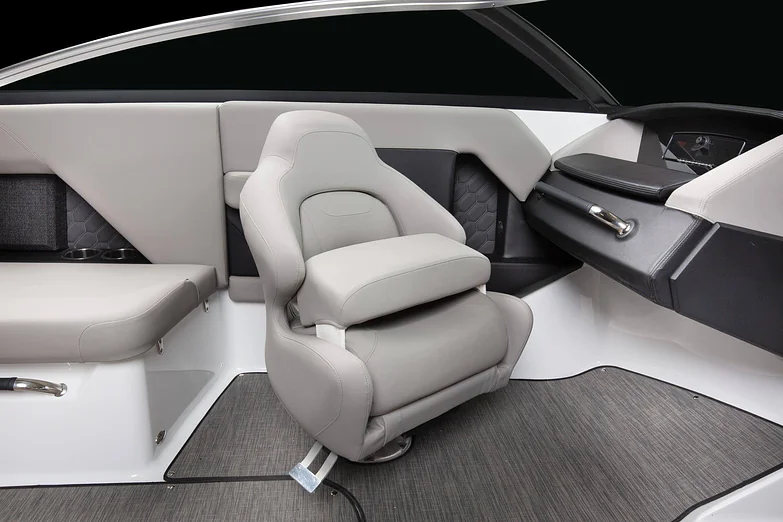

- Seating, ComfortRide, flip-up bucket bolster(s)

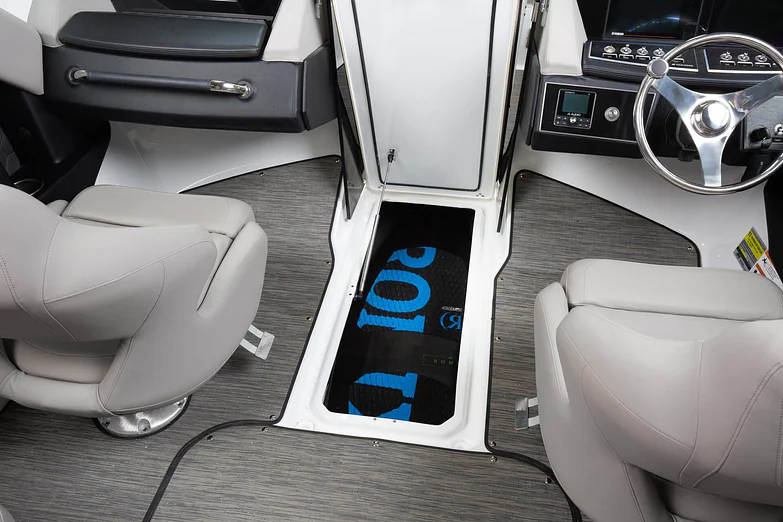

- Ski locker, in-floor, w/ gas-assist hinged lid & mat
- Storage, aft, cockpit basement
- Storage, beneath sundeck, mesh bags
- Storage, bow & cockpit, beneath seats
- Storage, cockpit, sidewall storage w/ beverage holders

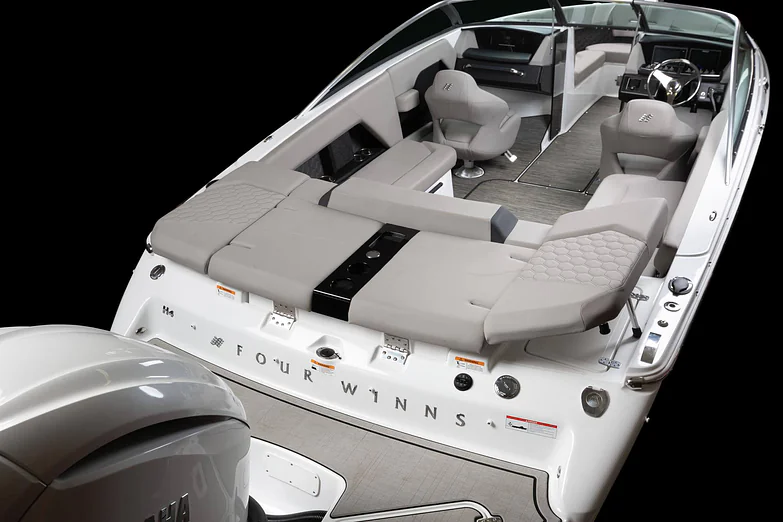

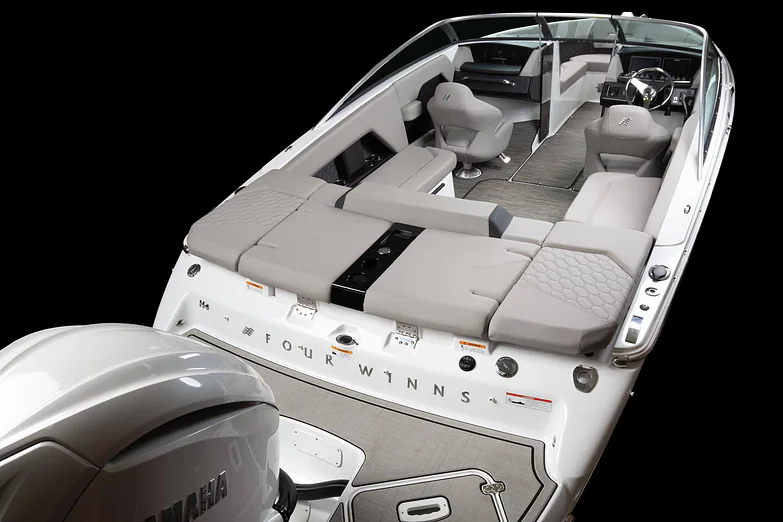

- Sundeck, aft w/ chaise lounge
- Trash receptacle(s)
- Upholstery, premium contoured vinyl w/ custom detailing
- Walk-thru transom
- Water intrusion management system
- Helm
-
- Dash, rich hand-wrapped vinyl, w/ custom detailing & LED accent lighting
- Depth sounder
- Emergency engine shut-off
- Instrumentation, helm: touch screen, integrated gauges and GPS speed
- Lighted switches, LED
- Steering wheel, deluxe, tilt

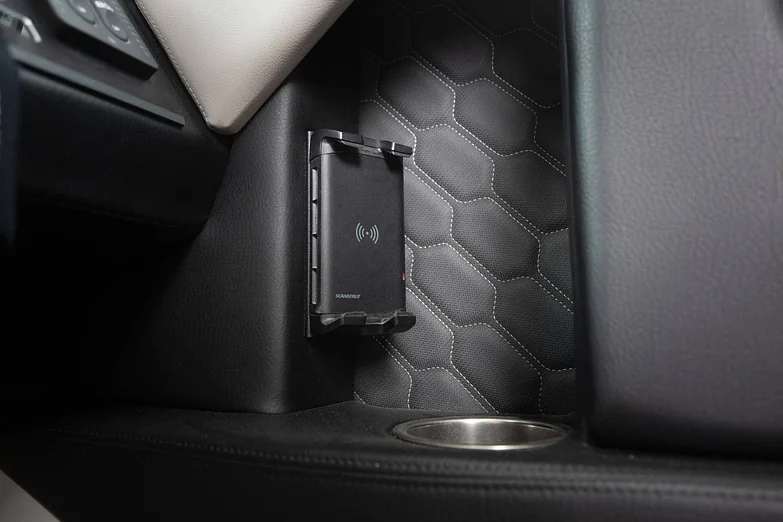

- Phone charger/holder, wireless
- Entertainment
-
- Speakers, (4)
- Stereo, w/ AM/FM radio, Bluetooth®
- USB port(s)
- Engine / Systems / Drive
-
- Battery single w/ on-off switch
- Battery(ies)
- Bilge pump(s), automatic
- Hydraulic tilt steering
- Outlet, 12V
- Outlet, USB charge port(s)
- Wiring harness w/ sealed connectors and tin coating for corrosion resistance
- Trailer
-
- Four Winns® custom-matched trailer w/ brakes, tandem axle
- Jack-stand, heavy-duty
- Self-centering bunks
- Submersible lighting, LED
- Swing-away tongue
- Wheels, aluminum
