H4 Surf
H4 Surf
Exceptional stability and maneuverability
Experience ultimate agility and comfort on water with the H4 Surf. Engineered for top-tier performance, it blends agility with premium comfort to redefine your boating experience. Enjoy exceptional stability and maneuverability whether cruising or engaging in water sports. Discover the perfect blend of adventure and relaxation with the H4 Surf for unforgettable journeys on the water.
- Length overall
- 23'11" / 7.30 m
- Beam
- 8'4" / 2.54 m
- CE Certification
- C10
- Persons capacity
- 10
The H4 Surf excels in both stability and agility, making it the perfect choice for water enthusiasts. Its superior stability ensures a smooth ride, even in challenging conditions, while its remarkable maneuverability allows for precise handling, whether you're cruising at high speeds or engaging in water sports. This combination of control and steadiness enhances the overall experience, allowing you to enjoy the water to the fullest, no matter your activity.
The H4 Surf elevates comfort to new heights with thoughtful design details. The swim platform mats are soft yet grippy, while the woven cockpit flooring adds a refined touch. Every inch reflects Four Winns' dedication to exceptional craftsmanship, from the hand-sewn stitching to the gleaming metal trim and plush foam, all combining to create an unparalleled level of comfort. The new monochrome color scheme brings simplicity and freshness to the cockpit’s aesthetic. Premium materials, like cool-touch vinyl-wrapped handles, durable upholstery, and padded bow walls, enhance the experience with enduring comfort and sophisticated style.
The H4 Surf boasts a powerful surf motorization system designed to elevate your driving experience. With its innovative features and superior performance, including the MerCruiser 300 engine, this surf boat ensures smooth maneuverability and impressive wave creation for an unforgettable day on the water.

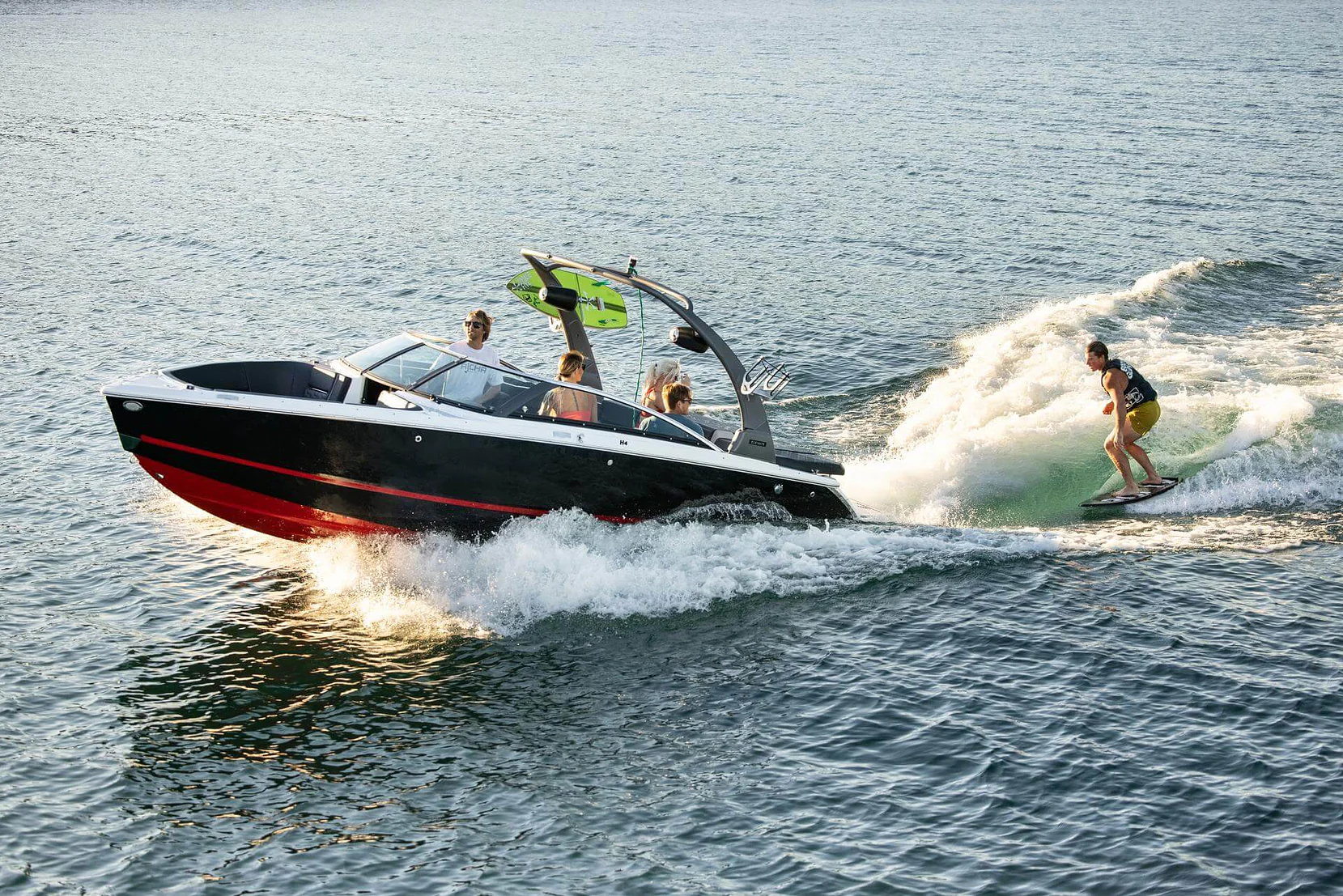

Equipped with our innovative Surf package, the H4 Surf ensures safer conditions for wake surfing and other water sports activities. Its forward drive propulsion system positions the propellers away from board riders, enhancing safety and peace of mind. Additionally, the integrated ballast system optimizes wave creation for the perfect surf experience. Dive into endless adventures on the water with the H4 Surf and make unforgettable memories with friends and family.
Media gallery
Choose your style
Technical specifications
Specifications
- Length overall
-
- 23'11"
- 7.30 m
- LOA w/ extended swim platform
-
- 26'3"
- 8 m
- Hull length
-
- 23'9"
- 7.24 m
- Beam
-
- 8'4"
- 2.54 m
- CE Certification
-
- C10
- C10
- Fuel capacity
-
- 52 gal
- 197 l
- Water capacity
-
- 12 gal
- 45 l
- Approx. Draft Up
-
- 1'7"
- 0.48 m
- Approx. Draft Down
-
- 3'
- 0.91 m
- Persons capacity
-
- 10
- 10
- Maximum Capacity
-
- 1800 lbs
- 816 kg
- Lightship Displacement (w/o engine)
-
- 3300 lbs
- 1500 kg
- Lightship Displacement (w/ engine)
-
- 4500 lbs
- 2040 kg
- Max. engine power
-
- 350 hp/cv
- 350 hp/cv
- Deadrise
-
- 18 °
- 18 °
- Bridge Clearance
-
- 3'11"
- 1.20 m
- Bridge Clearance w/ Arch or Tower
-
- 6'11"
- 2.10 m
- Total height
-
- 5'6"
- 1.68 m
- Total height on trailer
-
- 7'3"
- 2.20 m
- Height on Trailer w/Wakeboard Tower Dn
-
- 8'10"
- 2.69 m
- Height on Trailer w/Wakeboard Tower Up
-
- 10'1"
- 3.07 m
- Trailer weight single axe
-
- 1249 lbs
- 567 kg
- Trailer Weight Tandem Axle
-
- 1271 lbs
- 577 kg
- Storage length on trailer
-
- 24'11"
- 7.59 m
- Storage length on trailer with extended swim platform
-
- 26'1"
- 7.95 m
Standard features
- Stripe color
-
- White
- Solid Hull Color
-
- White
- Propulsion
-
- MerCruiser 6.2L 300 Bravo IVS DTS ECT FFD
- Cockpit color choices
-
- Lunar
- Hull and deck
-
- Bow rails, stainless steel
- Bow & stern eyes, stainless steel
- Cleats, fixed, stainless steel
- Exterior color, all white
- Exterior gel accent stripe, choice of color
- Fiberglass stringer system
- Horn
- Ladder, stern, angled, deep-reach, hidden w/ wide steps
- Meets applicable USCG & Canadian regs; NMMA certified using ABYC stds.
- Navigation lights, LED
- Rub rail w/ stainless steel insert
- Stable-Vee® hull next generation
- Swim platform, stern
- Thru-hull fittings, stainless steel
- Winning edge owner protection plan
- Windshield header, polished
- Windshield w/walk-thru, full-height, curved glass, exclusive design
- Tow sports accessories
-
- Ski tow, stern, stainless steel
- Cockpit
-
- Assist handle(s), stainless steel, vinyl wrapped
- Beverage holder(s), stainless steel
- Coaming pads w/ rich hand-fitted vinyl & comfort padding
- Choice of standard upholstery color
- Cooler, carry-on
- Courtesy lights, Blue LED
- Fiberglass liner, skid-resistant, self-draining
- Interior color scheme, choice of color
- Port console, glove box
- Seating, bow cushions, hinged
- Seating, cockpit, U-shaped
- Seating, ComfortRide, flip-up bucket bolster(s)
- Ski locker, in-floor, w/ gas-assist hinged lid & mat
- Storage, beneath sundeck, mesh bags
- Storage, bow & cockpit, beneath seats
- Storage, cockpit, sidewall storage w/ beverage holders
- Sundeck, aft w/ chaise lounge
- Trash receptacle(s)
- Upholstery, premium contoured vinyl w/ custom detailing
- Walk-thru transom
- Water intrusion management system
- Helm
-
- Dash, rich hand-wrapped vinyl, w/ custom detailing & LED accent lighting
- Depth sounder
- Emergency engine shut-off
- Instrumentation, helm: touch screen, integrated gauges and GPS speed
- Lighted switches, LED
- Phone charger/holder, wireless
- Steering wheel, premium upgrade, tilt
- Entertainment
-
- Speakers, (4)
- Stereo, w/ AM/FM radio, Bluetooth®
- USB port(s)
- Engine / Systems / Drive
-
- Battery single w/ on-off switch
- Battery(ies)
- Bilge blower(s)
- Bilge pump(s), automatic
- Engine blower
- Engine vents
- Outlet, 12V
- Outlet, USB charge port(s)
- Trim switch, power at transom
- Wiring harness w/ sealed connectors and tin coating for corrosion resistance
- Trailer
-
- Four Winns® custom-matched trailer w/ brakes, tandem axle
- Jack-stand, heavy-duty
- Self-centering bunks
- Submersible lighting, LED
- Swing-away tongue
- Wheels, aluminum
