HD5 OB
Hand-crafted interior for iconic times
Tailored to meet everyone’s desires, the HD5 OB is prepared to power through the water or shack up at your favorite spot. Headlined by ample space for up to 13 people, the fully enclosed head compartment, and hand-crafted interior, this boat was bred for iconic moments, all the time.
- Length overall
- 24'40" / 7.41 m
- Beam
- 8'50" / 2.54 m
- CE Certification
- C10
- Persons capacity
- 10
.jpg)
The HD5 OB brings together the unmistakable style of Four Winns with the power and efficiency of outboard performance.
Its sleek lines and signature windshield exude timeless style, while the multiple swim platforms and open deck layout provide effortless access to the water for every activity.
By merging the spaciousness of a deck boat with a classic v-bottom hull, the HD5 OB delivers smooth, responsive handling without compromising on luxury—perfect for making the most of every moment on the water.
.jpg)
The HD5 Outboard offers superior comfort with coaming pads wrapped in rich, hand-fitted vinyl and premium contoured upholstery that adds custom detailing.
The U-shaped cockpit seating allows for spacious relaxation, while built-in coolers ensure your refreshments are always within reach. With a walk-thru transom and attention to every detail, this boat delivers an elevated experience on the water.
Media gallery
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
-min.jpg)
-min.jpg)
-min.jpg)
-min.jpg)
-min.jpg)
-min.jpg)
Choose your style
Virtual tour
Loading the virtual tour
Technical specifications
Specifications
- Length overall
-
- 24'40"
- 7.41 m
- Hull length
-
- 24'20"
- 7.37 m
- Beam
-
- 8'50"
- 2.54 m
- CE Certification
-
- C10
- C10
- Fuel capacity
-
- 55 gal
- 208 l
- Water capacity
-
- 12 gal
- 45 l
- Approx. Draft Up
-
- 18"
- 0.46 m
- Approx. Draft Down
-
- 35"
- 0.89 m
- Persons capacity
-
- 10
- 10
- Lightship Displacement (w/o engine)
-
- 3940 lbs
- 1790 kg
- Lightship Displacement (w/ engine)
-
- 4600 lbs
- 2086 kg
- Max. engine power
-
- 300 hp/cv
- 300 hp/cv
- Deadrise
-
- 20 °
- 20 °
- Bridge Clearance
-
- 4'70"
- 1.4 m
- Bridge Clearance w/ Arch or Tower
-
- 7'60"
- 2.3 m
- Total height
-
- 6'40"
- 1.93 m
- Total height on trailer
-
- 8'1"
- 2.46 m
- Height on Trailer w/Wakeboard Tower Dn
-
- 9'60"
- 2.9 m
- Height on Trailer w/Wakeboard Tower Up
-
- 10'11"
- 3.33 m
- Trailer Weight Tandem Axle
-
- 1505 lbs
- 683 kg
- Storage length on trailer
-
- 26'11"
- 8.21 m
Standard features
- Stripe color
-
- White
- Integral hull
-
- White
- Hull and deck
-

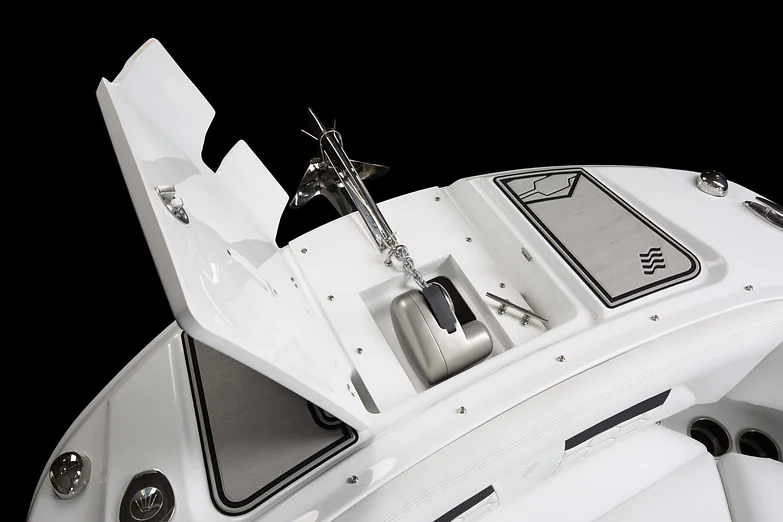

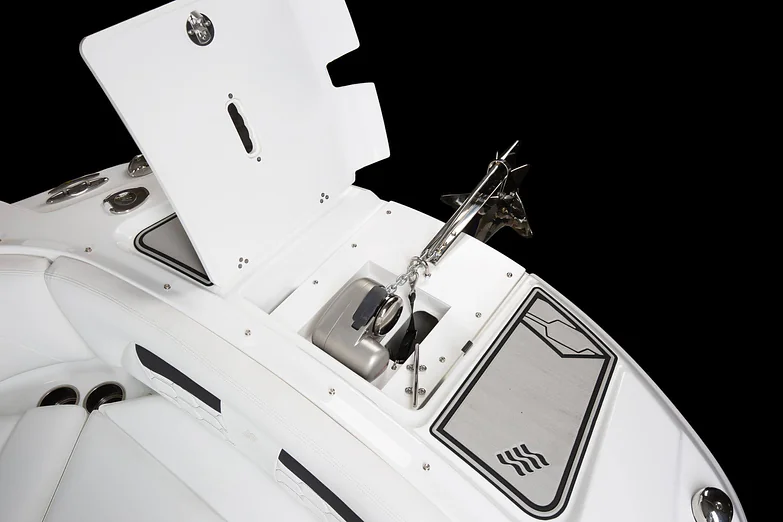

- Anchor locker w/ lid, latch & tie off
- Bow rails, stainless steel
- Bow & stern eyes, stainless steel
- Cleats, fixed, stainless steel
- Exterior color, all white
- Exterior color choices
- Exterior gel accent stripe, choice of color
- Fiberglass stringer system
- Horn
- Ladder, bow, wide-step, hidden, telescoping
- Ladder, stern, angled, deep-reach, hidden w/ wide steps
- Meets applicable USCG & Canadian regs; NMMA certified using ABYC stds.
- Navigation lights, LED
- Port window, head
- Rub rail w/ stainless steel insert
- Stable-Vee® hull next generation
- Swim platform, stern

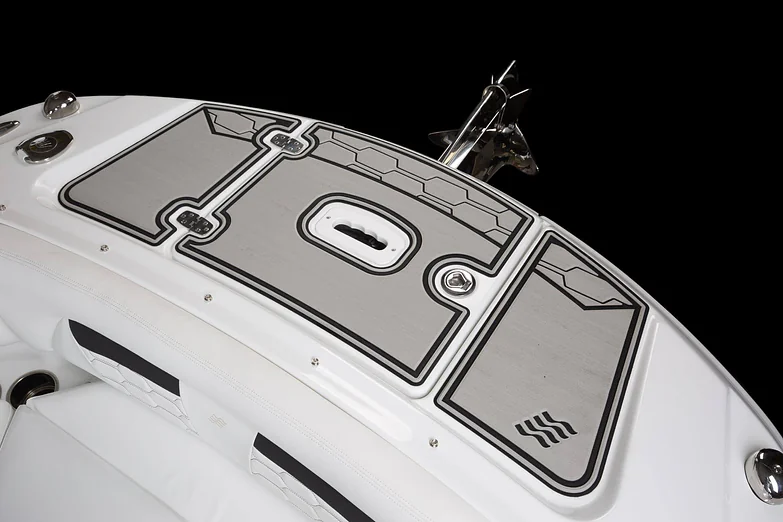

- Swim platform, bow
- Thru-hull fittings, stainless steel
- Winning edge owner protection plan
- Windshield header, polished
- Windshield w/walk-thru, full-height, curved glass, exclusive design
- Cockpit
-
- Assist handle(s), stainless steel
- Beverage holder(s), stainless steel
- Coaming pads w/ rich hand-fitted vinyl & comfort padding
- Cooler(s), built-in

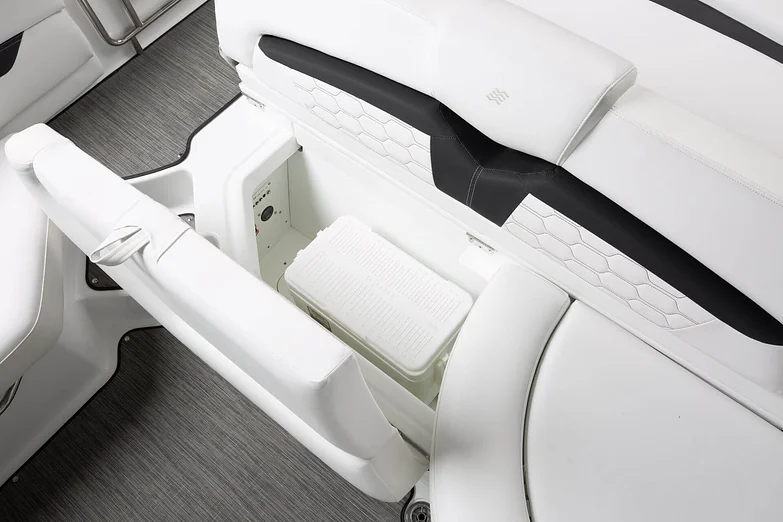

- Cooler, carry-on
- Cooler, carry-on, cockpit basement, 72qt.
- Courtesy lights, Blue LED
- Fiberglass liner, skid-resistant, self-draining
- Interior color scheme, choice of color

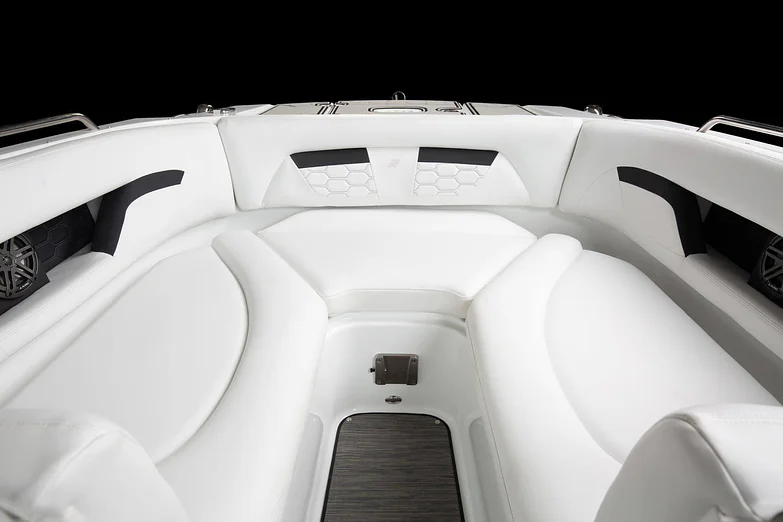

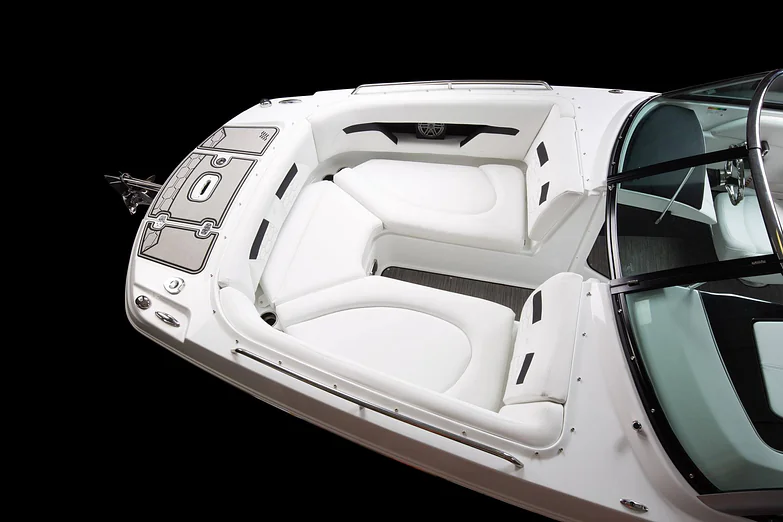

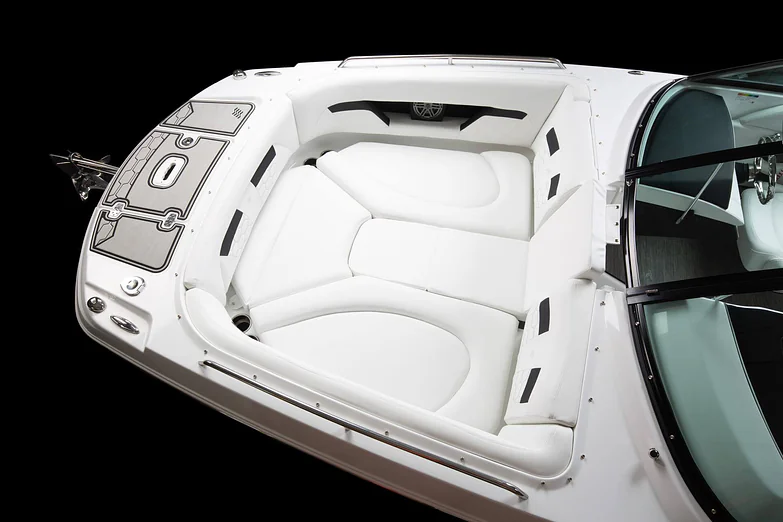

- Seating, bow cushions, hinged

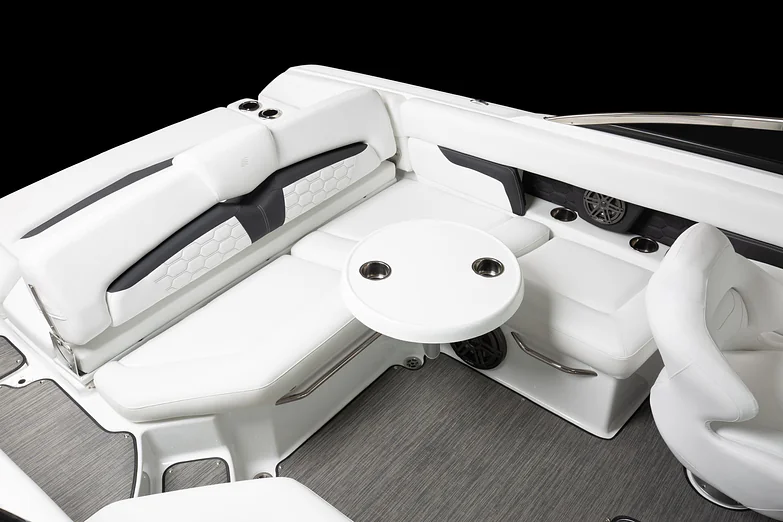

- Seating, cockpit, U-shaped

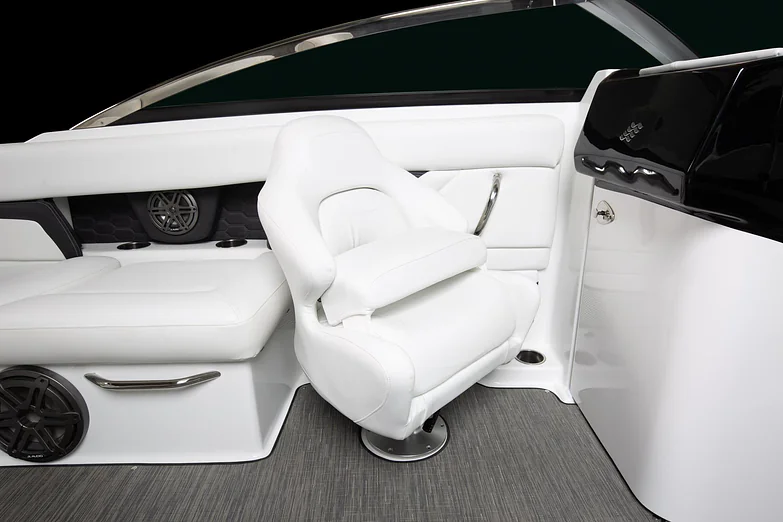

- Seating, ComfortRide, flip-up bucket bolster(s)
- Self-bailing cockpit

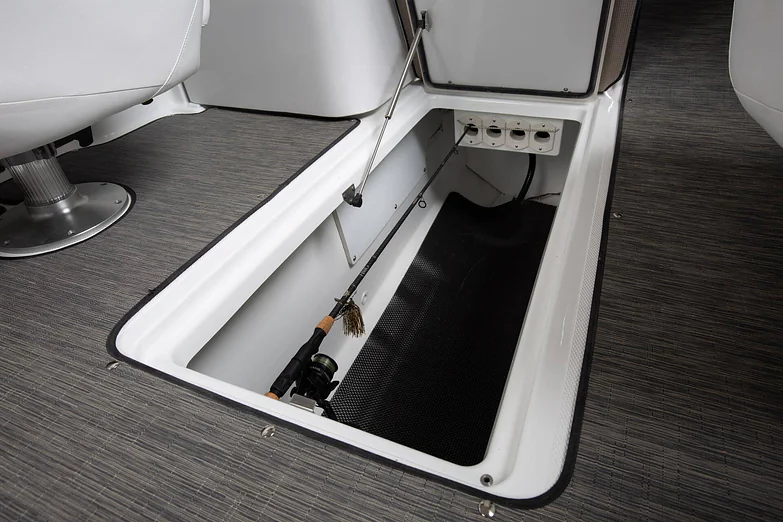

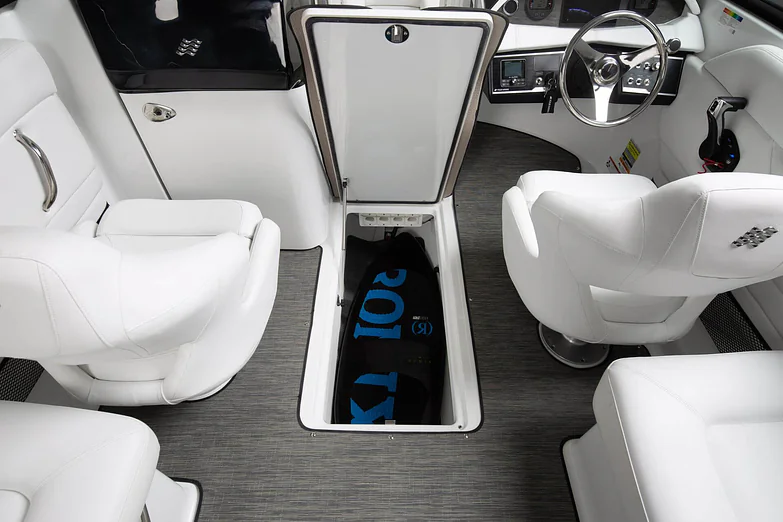

- Ski locker, in-floor, w/ gas-assist hinged lid & mat

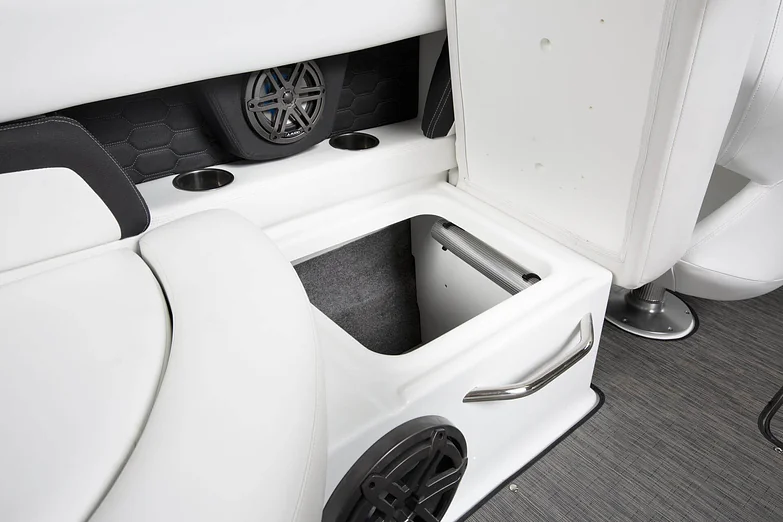

- Storage, bow & cockpit, beneath seats
- Storage, bow, behind backrest at helm
- Storage, cockpit, sidewall storage w/ beverage holders

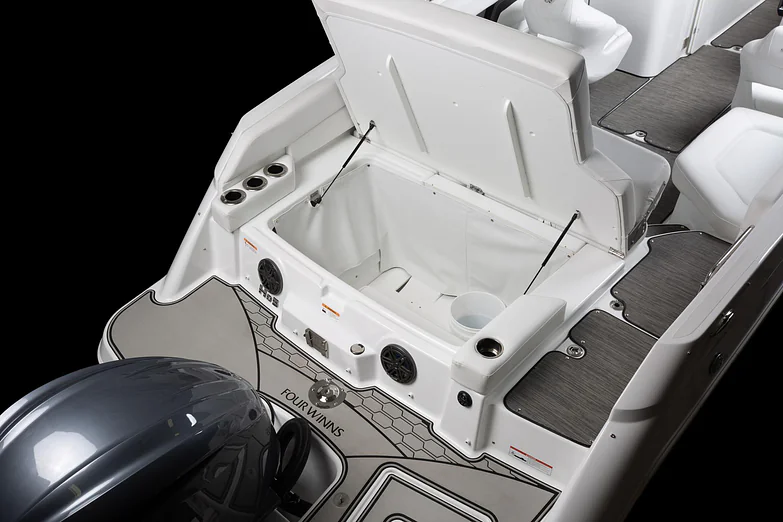

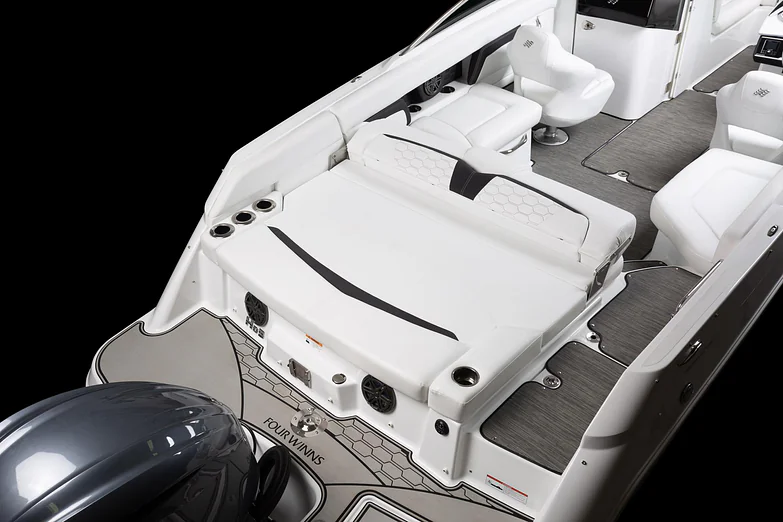

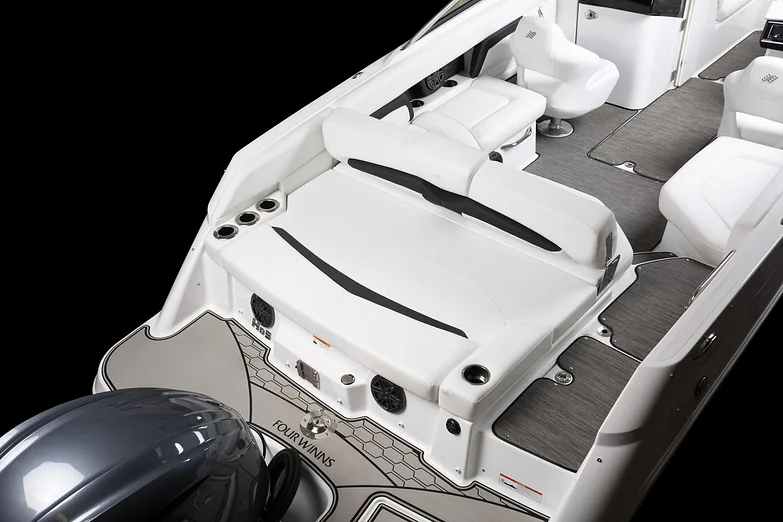

- Sun lounge, aft, convertible

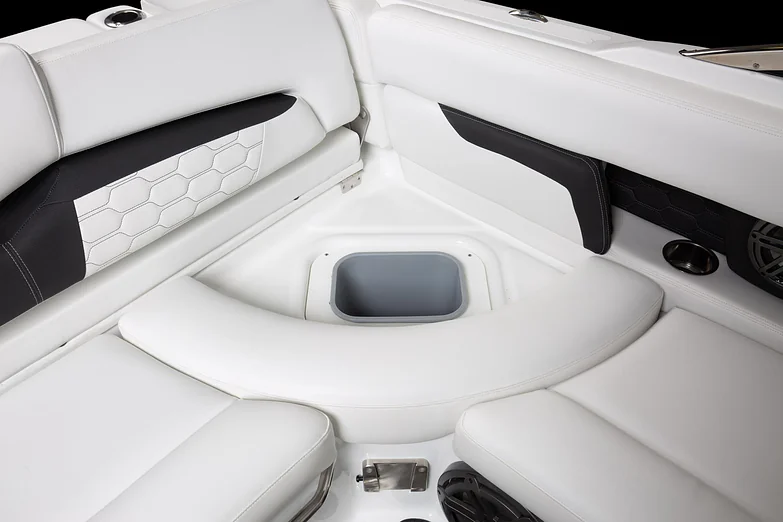

- Trash receptacle(s)
- Upholstery, premium contoured vinyl w/ custom detailing

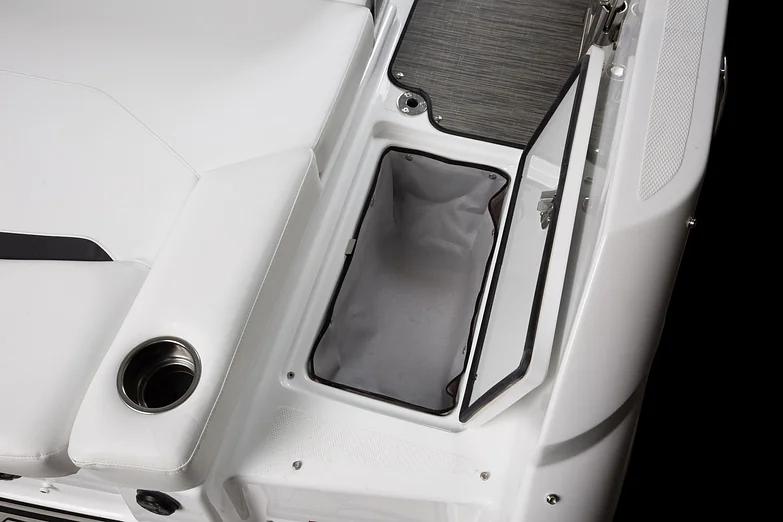

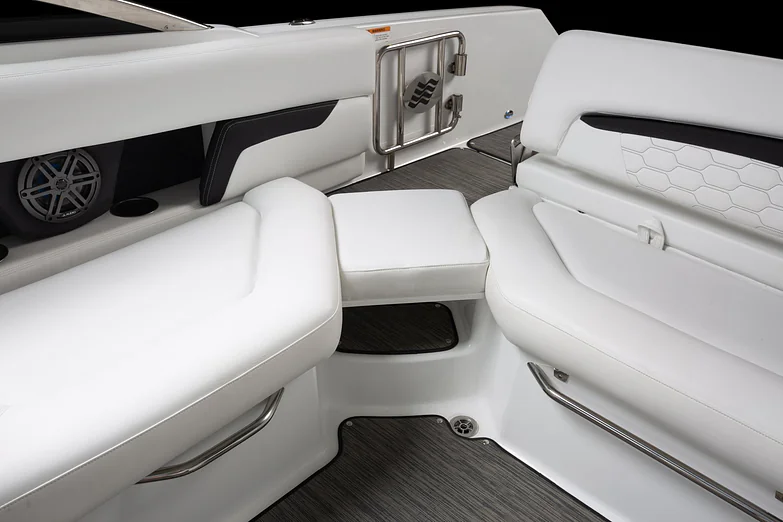

- Walk-thru transom

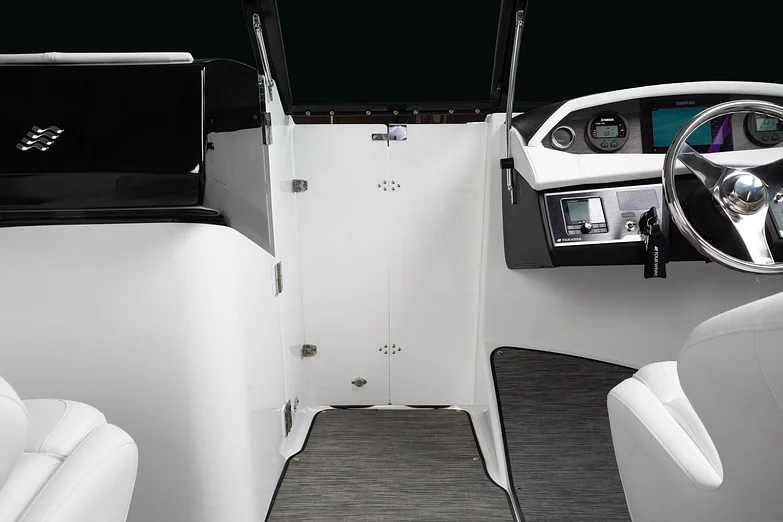

- Walk-thru transom door
- Water intrusion management system
- Helm
-
- Custom gauges, fog-resistant
- Dash, rich hand-wrapped vinyl, w/ custom detailing & LED accent lighting
- Depth sounder
- Emergency engine shut-off
- Instrumentation, helm: engine system matched gauges
- Lighted switches, LED
- Steering wheel, deluxe, tilt
- Entertainment
-
- Speakers, (4)
- Stereo, w/ AM/FM radio, Bluetooth®
- USB port(s)
- Engine / Systems / Drive
-
- Batteries dual w/ on-off switch
- Battery(ies)
- Bilge pump(s), automatic
- Freshwater system
- Outlet, 12V
- Outlet, USB charge port(s)
- Wiring harness w/ sealed connectors and tin coating for corrosion resistance
- Head / Changing Compartment
-
- Head, porta pottie, sink & light
- Trailer
-
- Four Winns® custom-matched trailer w/ brakes, tandem axle
- Jack-stand, heavy-duty
- Self-centering bunks
- Submersible lighting, LED
- Swing-away tongue
- Wheels, aluminum
