Discover the H4

Four Winns

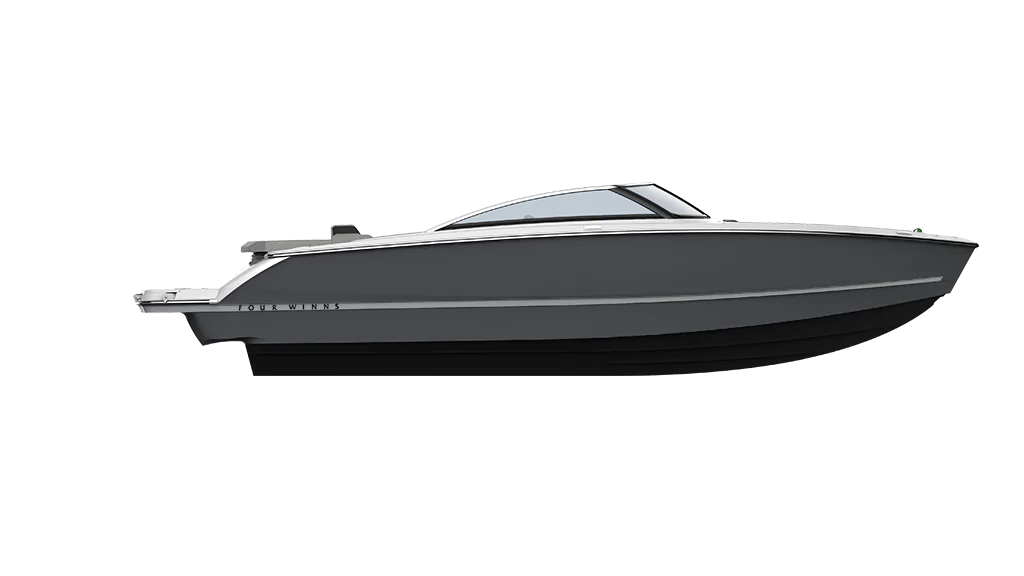

The H4, a re-imagined bowrider that brings a fresh sense of style and excitement to the category. Defined by its vertical bow stem, the H4 combines strength with a contemporary style, further proving that Four Winns is willing to break from tradition to create something iconic and new.

Deck plan

Deck Layout

Color options

Hull side

Classic Navy

Crimson Red

Denim Blue

Liquid Blue

Jet Black

Phantom Grey

Elevate exterior package

Elevate Jet Black/Crimson Red

Elevate Phantom Grey/Jet Black

Specifications

Length overall
  • 23'11"
  • 7.3 m
LOA w/ extended swim platform
  • 26'30"
  • 8 m
Hull length
  • 23'90"
  • 7.24 m
Beam
  • 8'50"
  • 2.54 m
CE Certification
  • C10
  • C10
Fuel capacity
  • 52 gal
  • 197 l
Water capacity
  • 12 gal
  • 45 l
Approx. Draft Up
  • 19"
  • 0.48 m
Approx. Draft Down
  • 36"
  • 0.91 m
Persons capacity
  • 10
  • 10
Maximum Capacity
  • 1800 lbs
  • 816 kg
Lightship Displacement (w/o engine)
  • 3300 lbs
  • 1500 kg
Lightship Displacement (w/ engine)
  • 4500 lbs
  • 2040 kg
Max. engine power
  • 350 hp/cv
  • 350 hp/cv
Deadrise
  • 18 °
  • 18 °
Bridge Clearance
  • 3'11"
  • 1.2 m
Bridge Clearance w/ Arch or Tower
  • 6'1"
  • 2.1 m
Total height
  • 5'60"
  • 1.68 m
Total height on trailer
  • 7'20"
  • 2.2 m
Height on Trailer w/Wakeboard Tower Dn
  • 8'1"
  • 2.69 m
Height on Trailer w/Wakeboard Tower Up
  • 10'1"
  • 3.07 m
Trailer weight single axe
  • 1249 lbs
  • 567 kg
Trailer Weight Tandem Axle
  • 1271 lbs
  • 577 kg
Storage length on trailer
  • 24'11"
  • 7.59 m
Storage length on trailer with extended swim platform
  • 26'1"
  • 7.95 m

Standard features and options

Available as standard

Stripe color
  • White
Integral hull
  • White
Cockpit color choices
  • Lunar
Hull and deck
  • Bow rails, stainless steel
  • Bow & stern eyes, stainless steel
  • Cleats, fixed, stainless steel
  • Exterior color, all white
  • Exterior gel accent stripe, choice of color
  • Fiberglass stringer system
  • Horn
  • Ladder, stern, angled, deep-reach, hidden w/ wide steps
  • Meets applicable USCG & Canadian regs; NMMA certified using ABYC stds.
  • Navigation lights, LED
  • Rub rail w/ stainless steel insert
  • Stable-Vee® hull next generation
  • Swim platform, stern
  • Thru-hull fittings, stainless steel
  • Winning edge owner protection plan
  • Windshield header, polished
  • Windshield w/walk-thru, full-height, curved glass, exclusive design
Tow sports accessories
  • Ski tow, stern, stainless steel
Cockpit
  • Assist handle(s), stainless steel, vinyl wrapped
  • Beverage holder(s), stainless steel
  • Coaming pads w/ rich hand-fitted vinyl & comfort padding
  • Choice of standard upholstery color
  • Cooler, carry-on
  • Courtesy lights, Blue LED
  • Fiberglass liner, skid-resistant, self-draining
  • Interior color scheme, choice of color
  • Port console, glove box
  • Seating, bow cushions, hinged
  • Seating, cockpit, U-shaped
  • Seating, ComfortRide, flip-up bucket bolster(s)
  • Ski locker, in-floor, w/ gas-assist hinged lid & mat
  • Storage, beneath sundeck, mesh bags
  • Storage, bow & cockpit, beneath seats
  • Storage, cockpit, sidewall storage w/ beverage holders
  • Sundeck, aft w/ chaise lounge
  • Trash receptacle(s)
  • Upholstery, premium contoured vinyl w/ custom detailing
  • Walk-thru transom
  • Water intrusion management system
Helm
  • Dash, rich hand-wrapped vinyl, w/ custom detailing & LED accent lighting
  • Depth sounder
  • Emergency engine shut-off
  • Instrumentation, helm: touch screen, integrated gauges and GPS speed
  • Lighted switches, LED
  • Phone charger/holder, wireless
  • Steering wheel, premium upgrade, tilt
Entertainment
  • Speakers, (4)
  • Stereo, w/ AM/FM radio, Bluetooth®
  • USB port(s)
Engine / Systems / Drive
  • Battery single w/ on-off switch
  • Battery(ies)
  • Bilge blower(s)
  • Bilge pump(s), automatic
  • Engine blower
  • Engine vents
  • Outlet, 12V
  • Outlet, USB charge port(s)
  • Trim switch, power at transom
  • Wiring harness w/ sealed connectors and tin coating for corrosion resistance
Trailer
  • Four Winns® custom-matched trailer w/ brakes, tandem axle
  • Jack-stand, heavy-duty
  • Self-centering bunks
  • Submersible lighting, LED
  • Swing-away tongue
  • Wheels, aluminum

Other options

Stripe color
  • Classic Navy
  • Cognac
  • Crimson Red
  • Denim Blue
  • Liquid Blue
  • Jet Black
  • Phantom Grey
Hull side
  • Classic Navy
  • Crimson Red
  • Denim Blue
  • Liquid Blue
  • Jet Black
  • Phantom Grey
Integral hull
  • Classic Navy
  • Crimson Red
  • Denim Blue
  • Jet Black
  • Liquid Blue
  • Phantom Grey
Elevate exterior package
  • Elevate Jet Black/Crimson Red
  • Elevate Phantom Grey/Jet Black
Engines
  • MerCruiser 4.5L 250 Bravo III DTS
  • MerCruiser 4.5L 250 Bravo III DTS ECT
  • MerCruiser 6.2L 300 Bravo III DTS
  • MerCruiser 6.2L 300 Bravo III DTS ECT
  • MerCruiser 6.2L 350 Bravo III DTS
  • MerCruiser 6.2L 350 Bravo III DTS ECT
  • V6-250/DPS 250HP
  • V6-250C/DPS 250HP
  • V6-280/DPS 280HP
  • V6-280C/DPS 280HP
  • V8-300CE/DPS EVC 300HP
  • V8-350CE/DPS EVC 350hp
Cockpit color choices
  • Cognac
  • Tropical
Elevate Interior Cool Touch®
  • Elevate Cool Touch Crimson Red
  • Elevate Cool Touch Jet Black
Hull and deck
  • Bow scuff plate, stainless steel
  • Cleats, pull-up, stainless steel
  • Docking lights, LED
  • Fender Hooks, Quick Connect
  • Swim platform extended
  • Swim platform extended mat, latte (tan)
  • Swim platform extended mat, titanium (gray)
  • Swim platform mat(s), latte (tan)
  • Swim platform mat(s), titanium (grey)
  • Shower, transom
  • Underwater lights, LED
  • Windlass w/rope, chain & anchor
Tow sports accessories
  • Board racks, pair, tower mount
  • Wakeboard tower, electric-assist hinging white, w/ bimini top
  • Wakeboard tower, hinging w/ gas-assist, w/ bimini top
  • Wakeboard tower, electric-assist hinging grey, w/ bimini top
Cockpit
  • Cushions, bow fill-in
  • Flooring, reed mat, ash (grey), removable
  • Flooring, Reed Mat, Coconut (light grey), removable
  • Flooring, Reed Mat, lunar (Elevate Edition), removable
  • Rod holder, stainless steel, aft
  • Table w/ mount(s), bamboo
  • Table(s) w/ mount
  • Walk-thru door(s)
Helm
  • GPS plotter
  • Steering wheel, deluxe, tilt
Entertainment
  • Stereo remote w/ display at transom
  • Tower speakers
Engine / Systems / Drive
  • Batteries dual w/ on-off switch
  • Battery charger
  • Fire extinguishing system, fixed (Required w/CE)
  • Trim tabs w/ LED indicators
Canvas
  • Bimini top w/ changing room
  • Cover, bow & cockpit (2-piece)
  • Sail shade, cockpit
Trailer
  • Without trailer

Packages

LX Package
  • Bimini top w/ changing room
  • Bow scuff plate, stainless steel
  • Cleats, pull-up, stainless steel
  • Flooring, reed mat, ash (grey) or coconut (light grey), removable
SLX Package
  • Cover, bow & cockpit (2-piece)
  • Cushions, bow fill-in
  • Docking lights, LED
  • Swim platform mat(s), latte (tan) or titanium (grey)
  • Table(s) w/ mount
  • Walk-thru doors
Premium Sound System
  • Amplifier
  • Lighting package, RGB
  • Cockpit speaker upgrade
  • Stereo remote w/ display at transom
  • Stereo upgrade
  • Subwoofer

This information is for reference only, and the actual design, specifications, and options may vary from the photos and other information shown. Contact your dealer for more information.
For a complete list of features, options and available power, see an authorized Four Winns dealer for additional details.
