Starting at $163,905.00 MSRP ^{excl. tax.}

Request out-the-door price Build your own

Elevate the Everyday

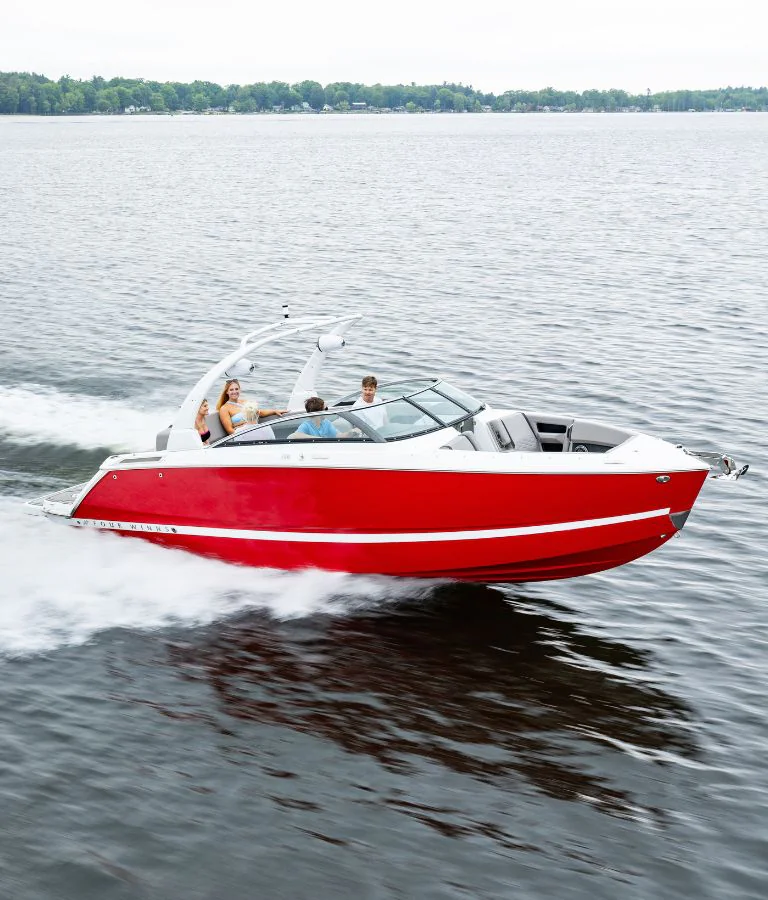

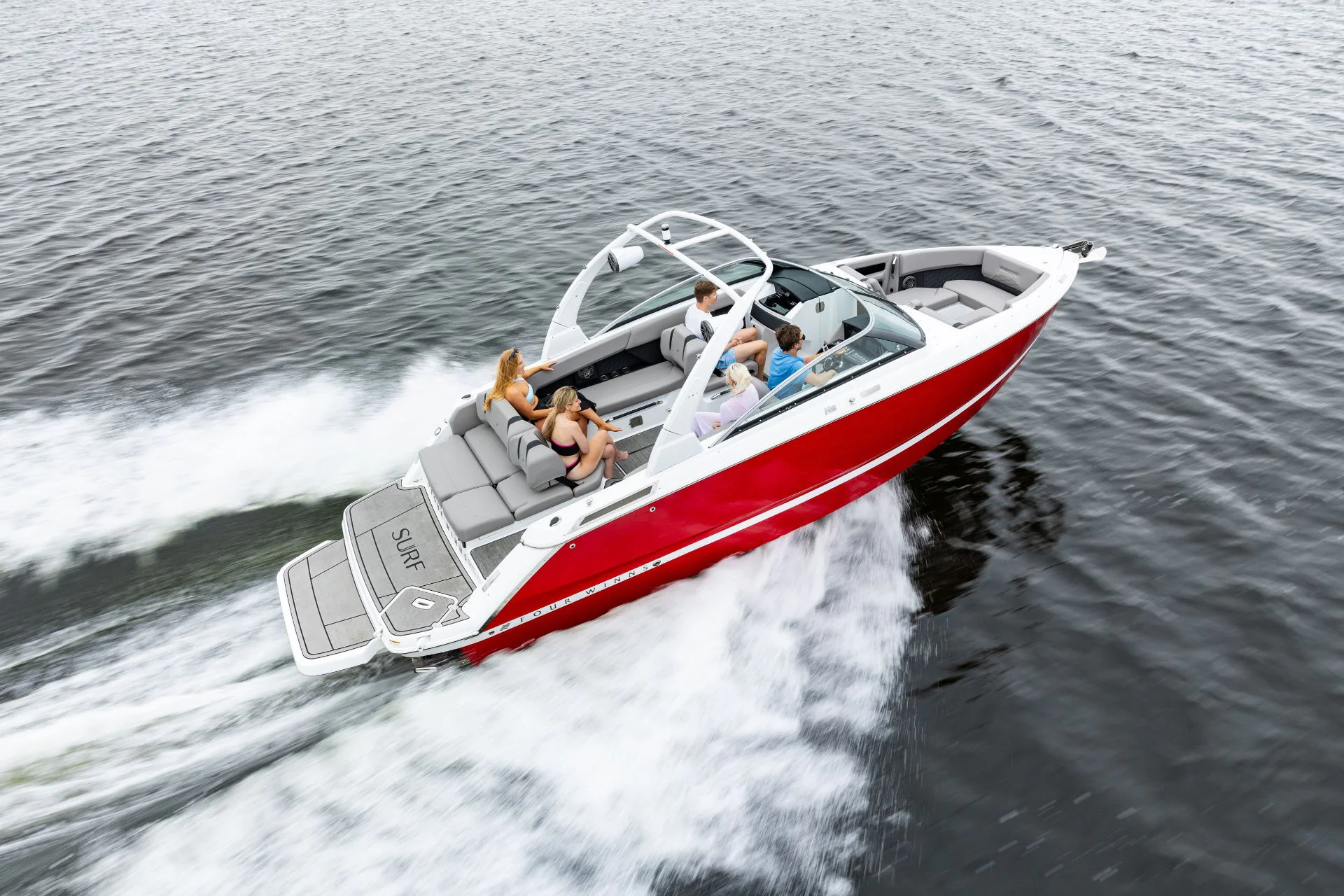

The H6 Surf takes the luxury and spaciousness of the H6 and adds serious wave-making capabilities. Whether you’re cruising in comfort or carving wakes at sunrise, this surf-ready package combines upscale styling with a performance edge that keeps the good times flowing.

Length overall: 26'2" / 7.97 m
Beam: 8'4" / 2.54 m
Max capacity: YACHT CERTIFIED

Spacious. Sophisticated. Designed for All-Day Escape.

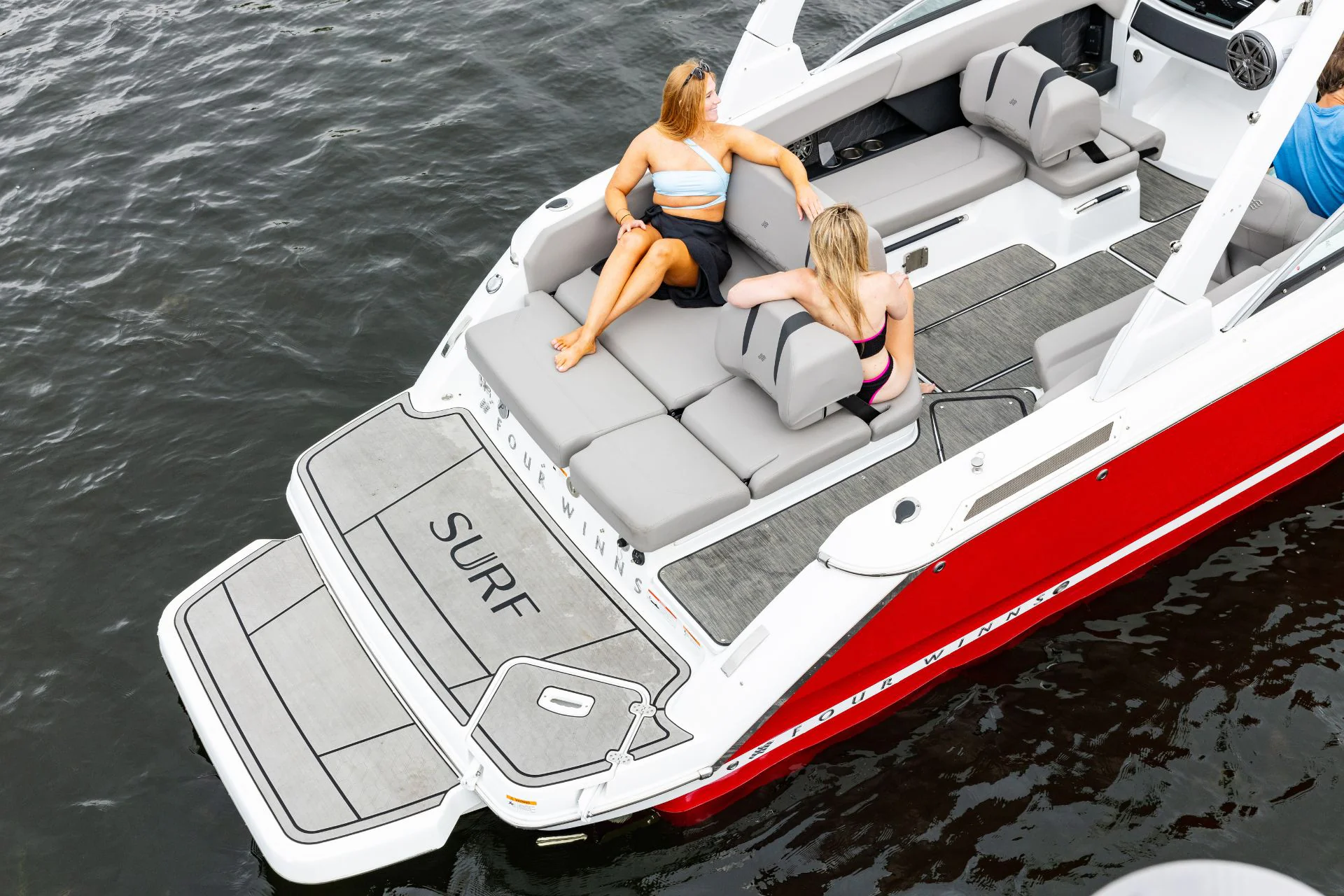

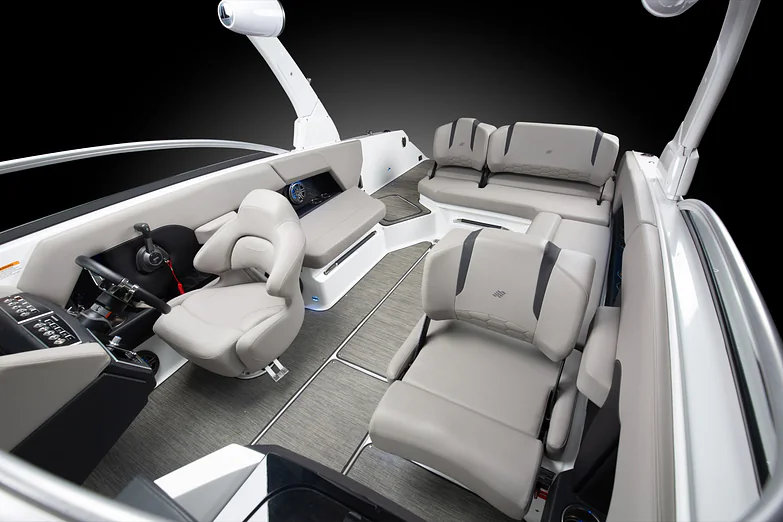

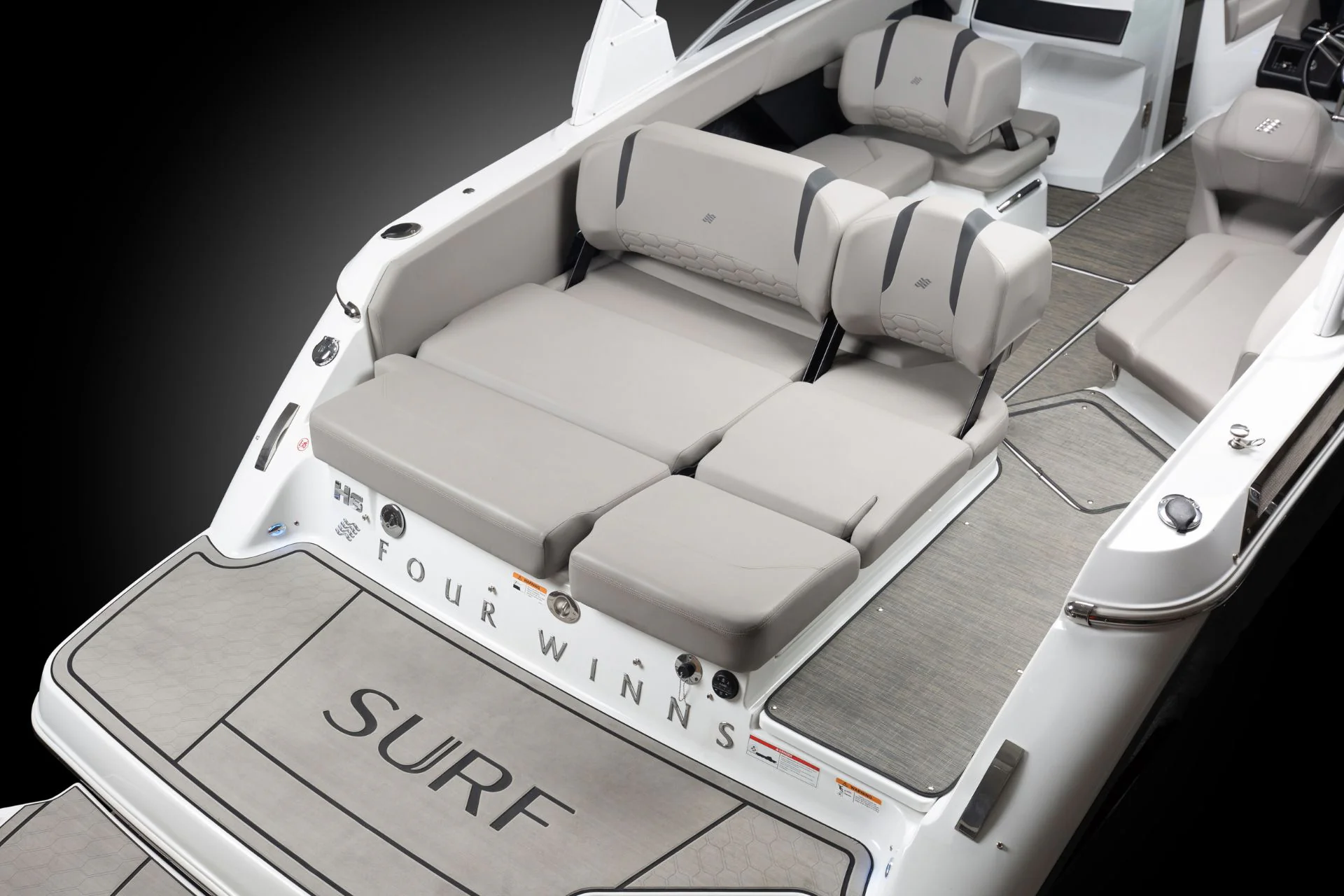

As the largest in the Surf lineup, the H6 Surf boasts refined interior styling, a generous beam, and deep seating that welcomes up to 14 onboard. Premium vinyls, ergonomic seating, and upscale finishes create an inviting space whether you’re prepping gear or kicking back post-session. An expansive swim platform and versatile aft lounge make transitions between surf and sun seamless, while thoughtful storage throughout keeps everything in place.

The Surf Package: Seamlessly Integrated. Effortlessly Customizable.

The Surf Package includes a factory-integrated ballast system, wake-shaping tabs, Zero Off™ speed control, and the Forward Drive—working together to deliver clean, rideable wakes. Dial in your wave height and shape to match your crew’s style, all from the helm. With the H6 Surf, the surf’s always up—and always your call.

Confident Surfing Starts with Smart Engineering

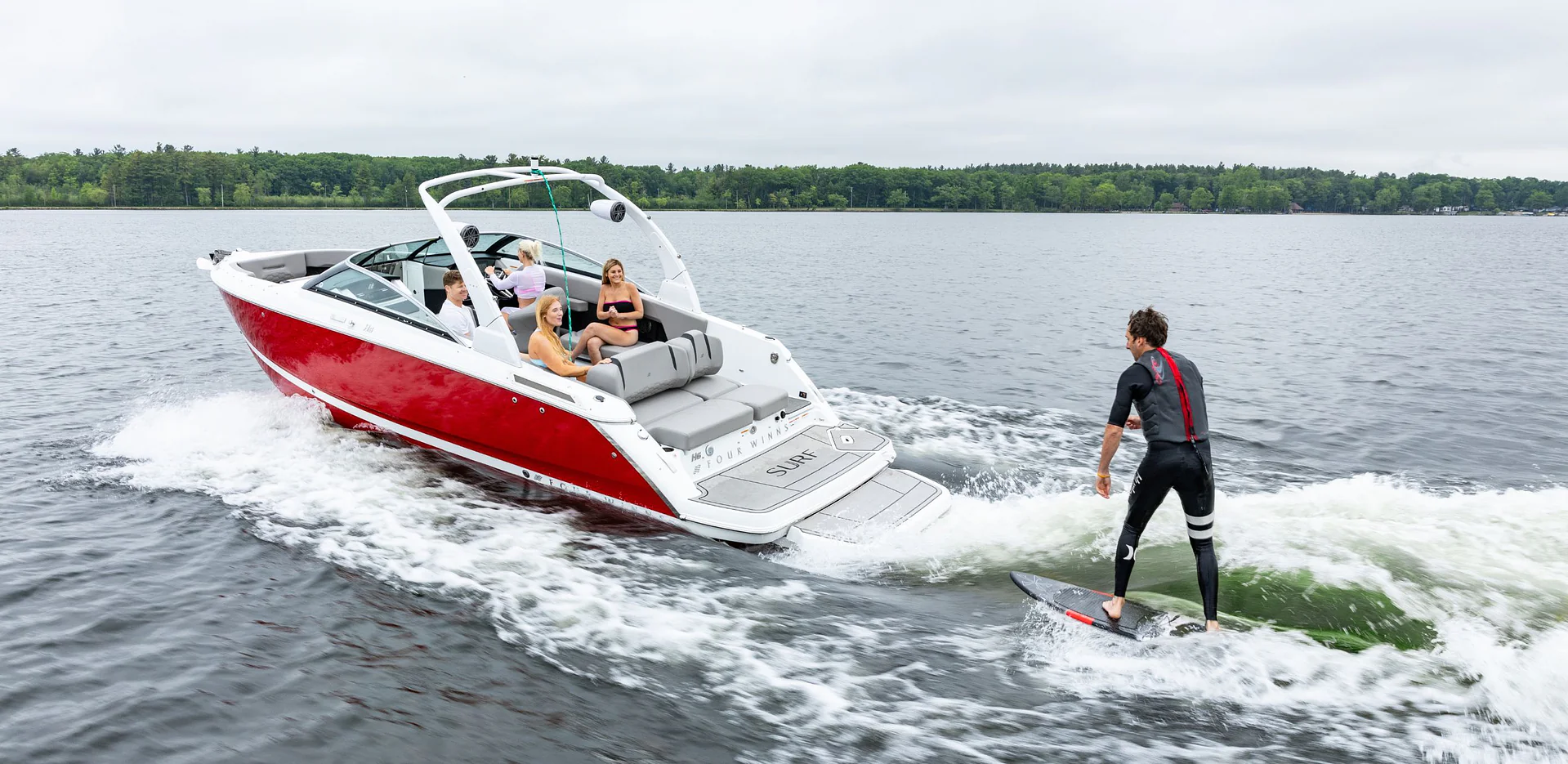

The H6 Surf features a forward-drive propulsion that positions the propellers safely away from the rider—promoting safer conditions for wake surfing and tow sports. Paired with the H6’s stable hull and premium handling, this setup delivers smooth acceleration and precise control behind the wheel. Choose from powerful MerCruiser® 6.2L V8 sterndrive 300 or 350 HP engines, or opt for Volvo V8 Forward Drive EVC options in 300 or 350 HP. However you power it, the H6 Surf is built to carve clean wakes and ride with confidence.

Media gallery

Choose your style

Technical specifications

Deck Layout

1. Swimming ladder
2. Huge versatile sunpad
3. Storages
4. Trash receptacle
5. Cup holders
6. Windlass
7. Cooler build-in

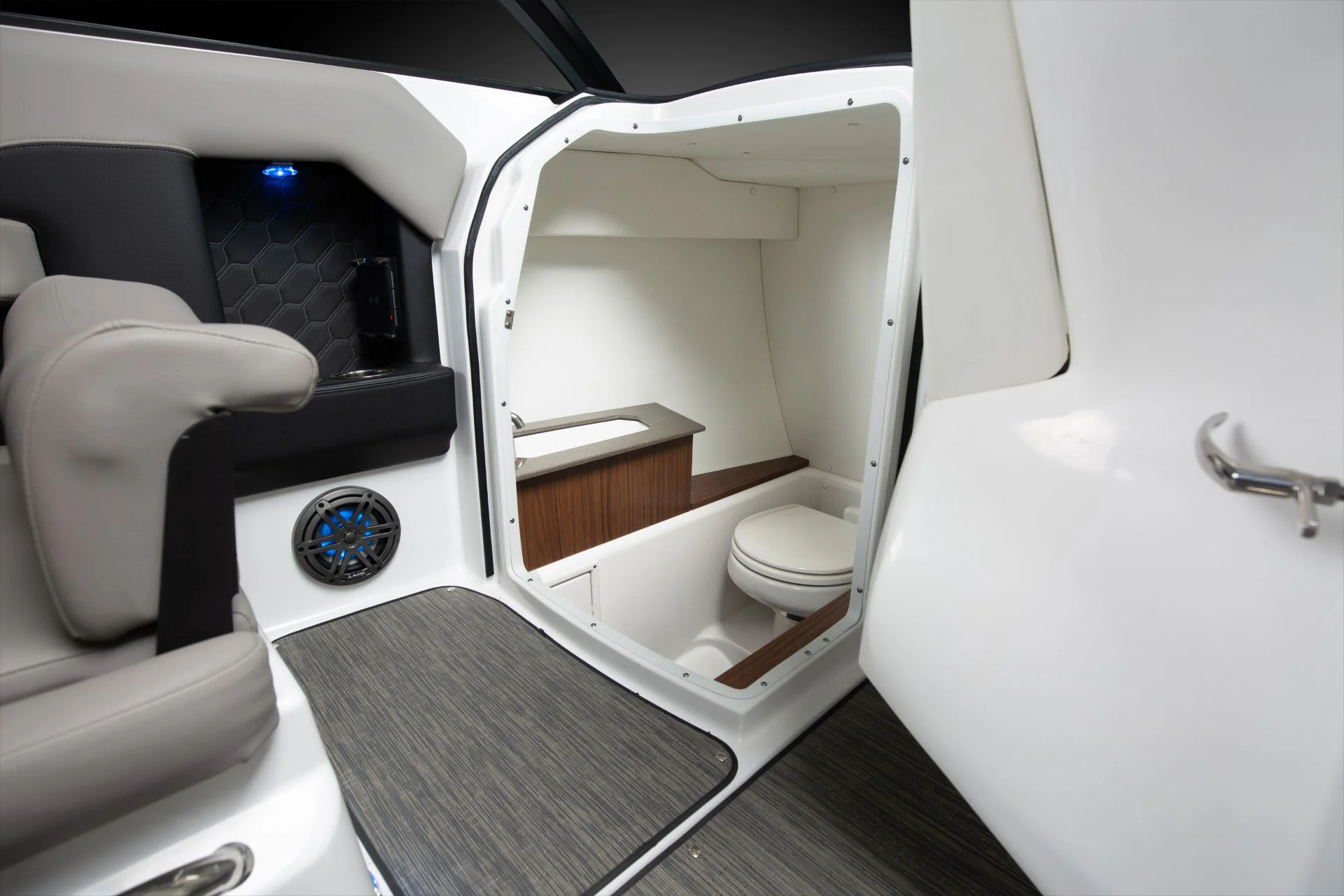

8. Head compartment

Specifications

Length overall: 26'2"

7.97 m
LOA w/ extended swim platform: 28'3"

8.61 m
Hull length: 26'

7.92 m
Beam: 8'4"

2.54 m
Fuel capacity: 100 gal

378 l
Water capacity: 12 gal

45 l
Approx. Draft Up: 1'11"

0.58 m
Approx. Draft Down: 3'3"

1 m
Max capacity: YACHT CERTIFIED

YACHT CERTIFIED
Displacement (w/o engine): 5000 lbs

2268 kg
Displacement w/ engine: 6000 lbs

2722 kg
Max. engine power: 350 hp/cv

350 hp/cv
Deadrise: 18 °

18 °
Bridge Clearance: 28'3"

8.61 m
Bridge Clearance w/ Arch or Tower: 7'11"

2.41 m
Total height: 6'9"

2.08 m
Height on Trailer w/Wakeboard Tower Dn: 11'6"

3.50 m
Trailer weight single axe: 1540 lbs

699 kg
Trailer Weight Tandem Axle: 1540 lbs

699 kg
Storage length on trailer: 28'3"

8.61 m
Storage length on trailer with extended swim platform: 29'11"

9.12 m

Standard features

Stripe color

Jet Black

Solid Hull Color

White

Standard Interior

Lunar

Hull and deck

Anchor locker w/ lid, latch & tie off
Bow rails, stainless steel
Bow & stern eyes, stainless steel
Cleats, fixed, stainless steel
Exterior color, all white
Exterior gel accent stripe, choice of color
Fiberglass stringer system
Horn
Ladder, stern, angled, deep-reach, hidden w/ wide steps
Meets applicable USCG & Canadian regs; NMMA certified using ABYC stds.
Navigation lights, LED
Rub rail w/ stainless steel insert
Stable-Vee® hull next generation
Swim platform, stern
Thru-hull fittings, stainless steel
Winning edge owner protection plan
Windshield header, polished
Windshield w/walk-thru, full-height, curved glass, exclusive design

Tow Sports

Ski tow, stern, stainless steel

Cockpit

Assist handle(s), stainless steel, vinyl wrapped
Beverage holder(s), stainless steel
Coaming pads w/ rich hand-fitted vinyl & comfort padding
Cooler, carry-on
Courtesy lights, Blue LED
Fiberglass liner, skid-resistant, self-draining
Interior color scheme, choice of color
Port console, glove box

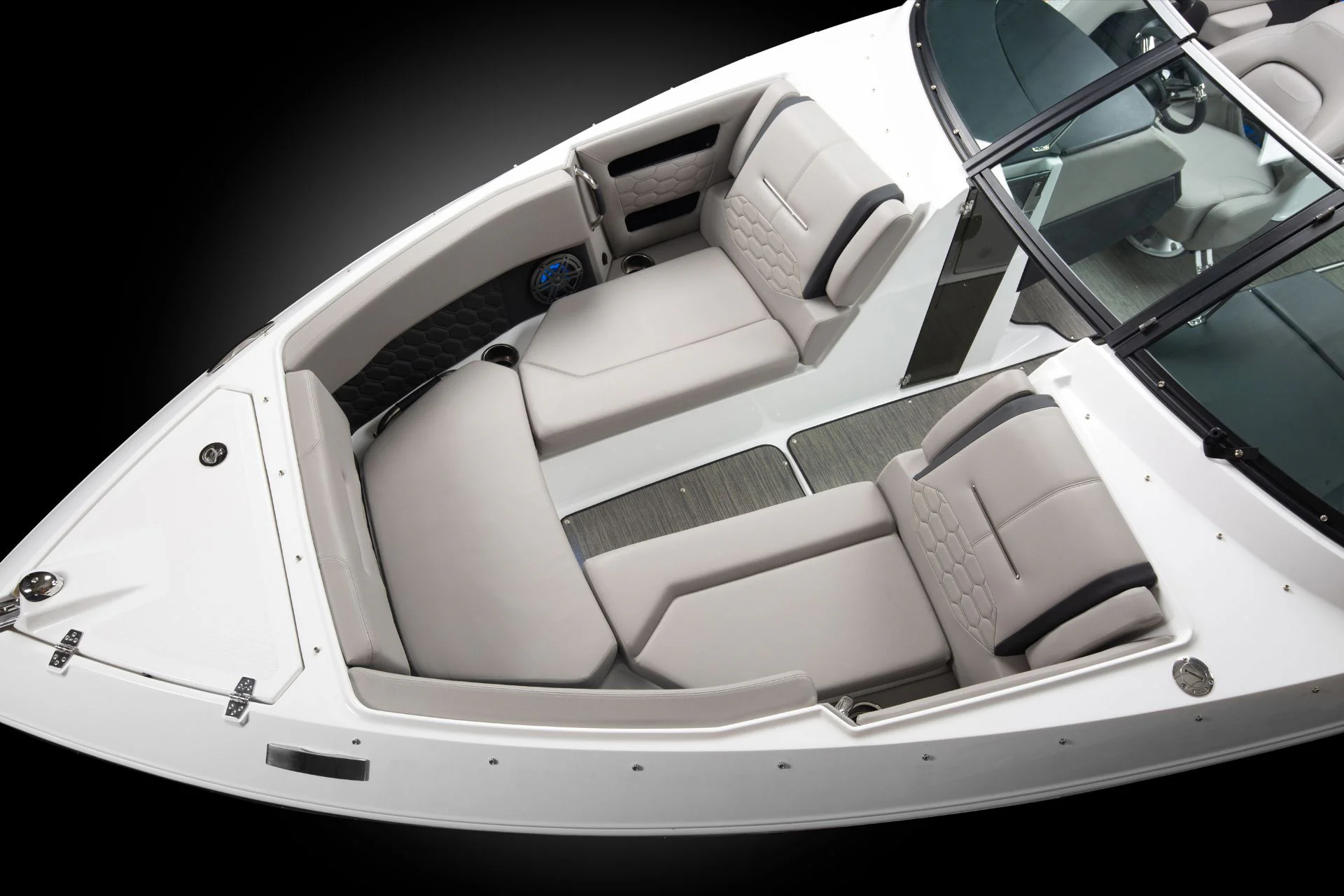

Seating, bow cushions, hinged
Seating, cockpit, U-shaped

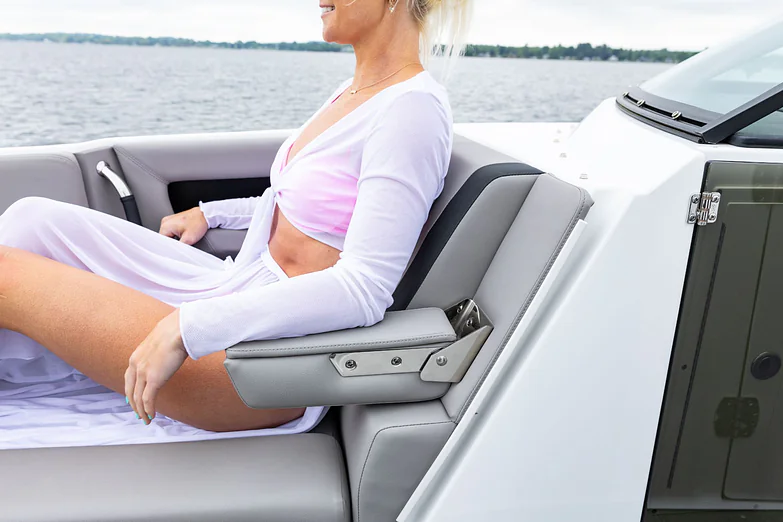

Seating, ComfortRide, flip-up bucket bolster(s)
Ski locker, in-floor, w/ gas-assist hinged lid & mat
Storage, beneath sundeck, mesh bags
Storage, bow & cockpit, beneath seats
Storage, cockpit, sidewall storage w/ beverage holders
Sundeck, aft w/ chaise lounge
Trash receptacle(s)
Upholstery, premium contoured vinyl w/ custom detailing
Walk-thru transom
Water intrusion management system

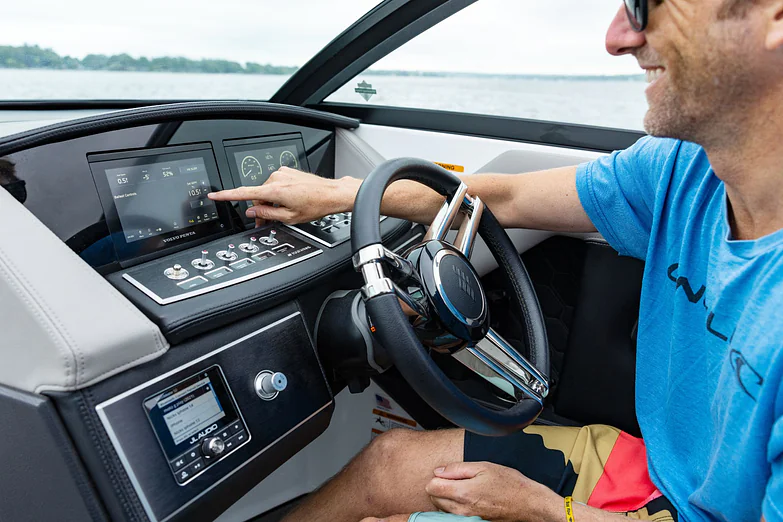

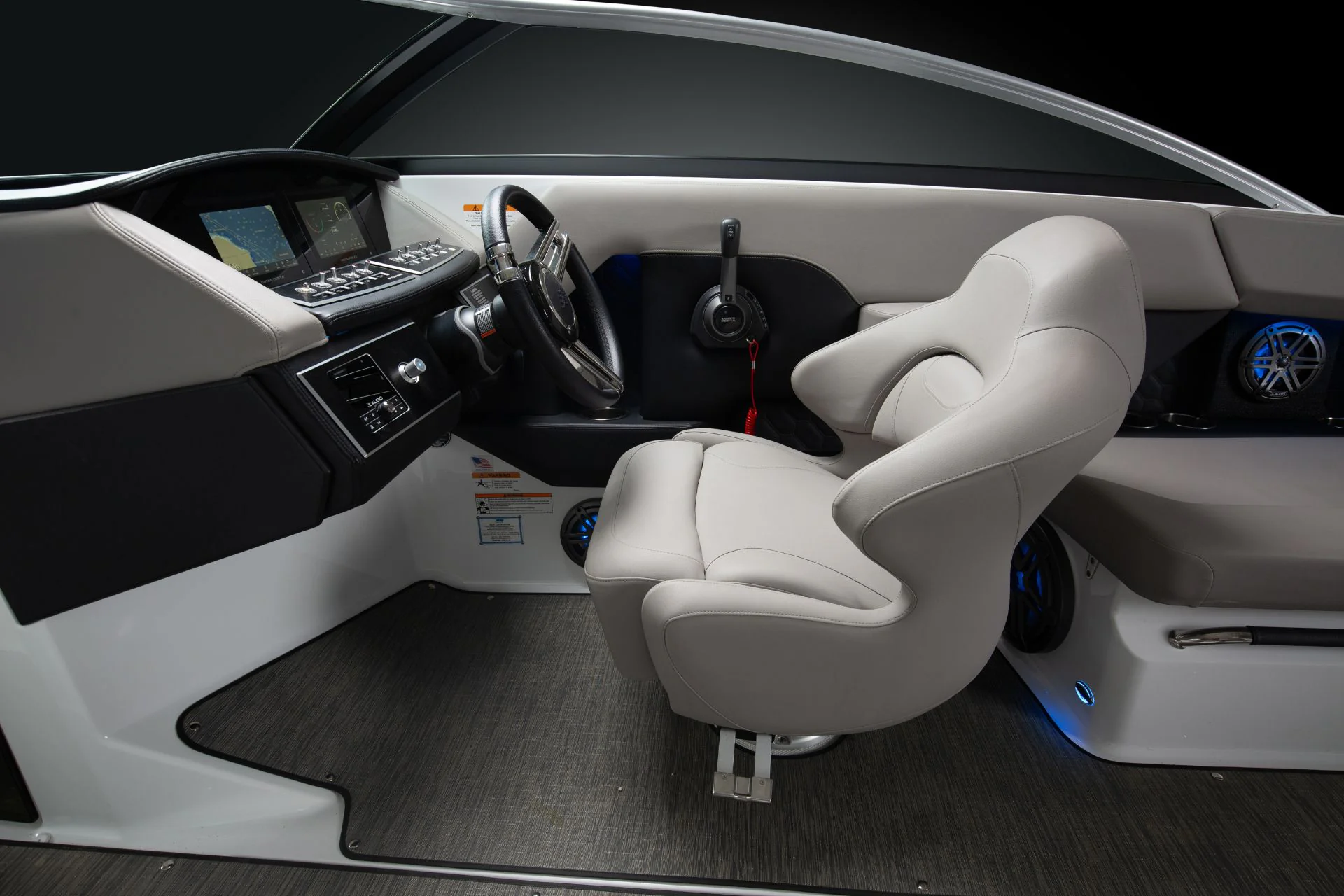

Helm

Dash, rich hand-wrapped vinyl, w/ custom detailing & LED accent lighting
Depth sounder
Emergency engine shut-off
GPS plotter
Instrumentation, helm: touch screen, integrated gauges and GPS speed
Lighted switches, LED
Steering wheel, deluxe, tilt
Phone charger/holder, wireless

Entertainment

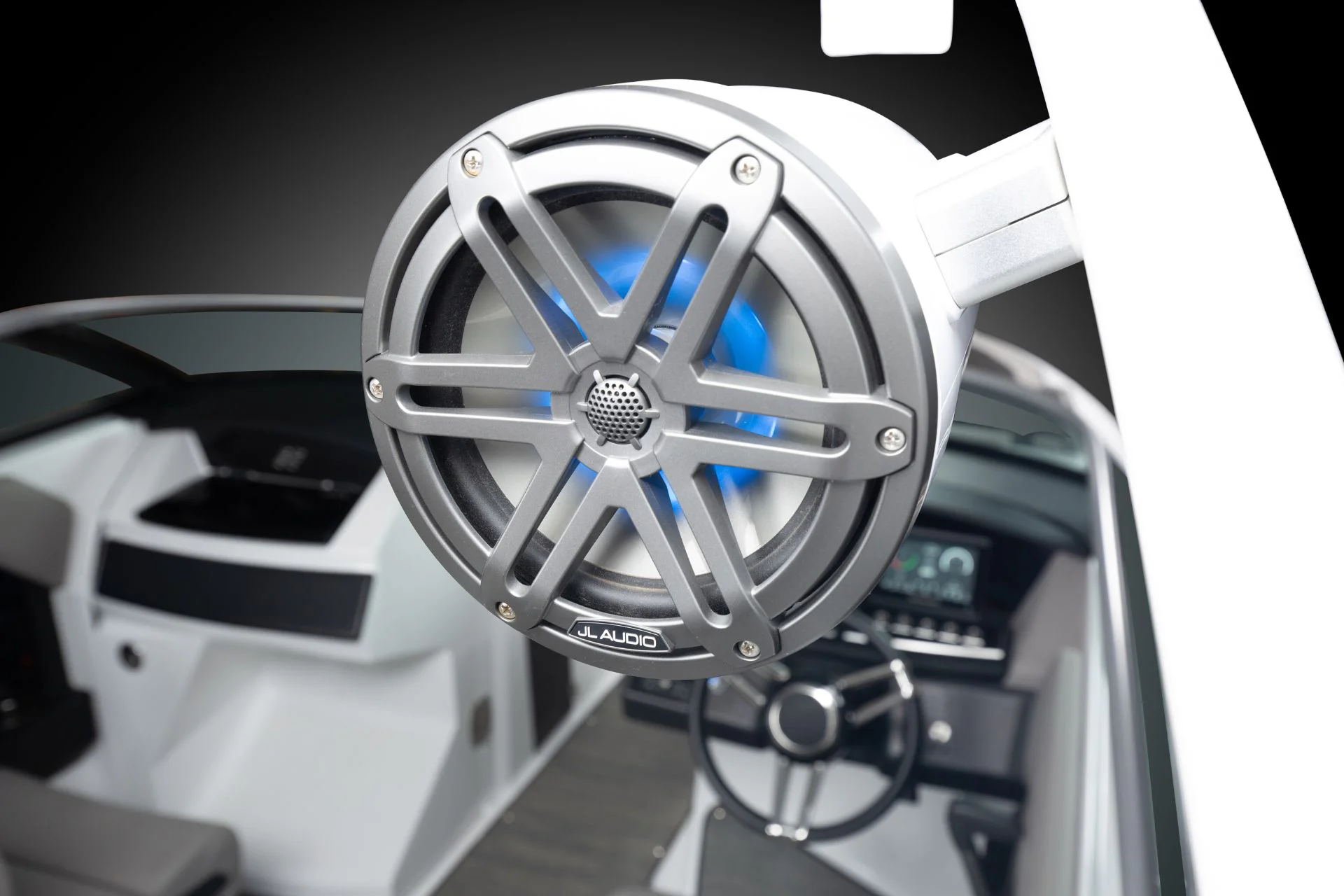

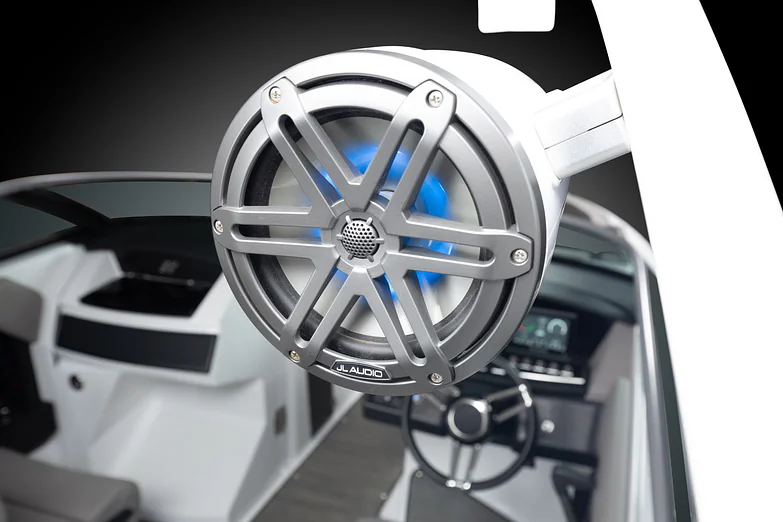

Speakers, (4)

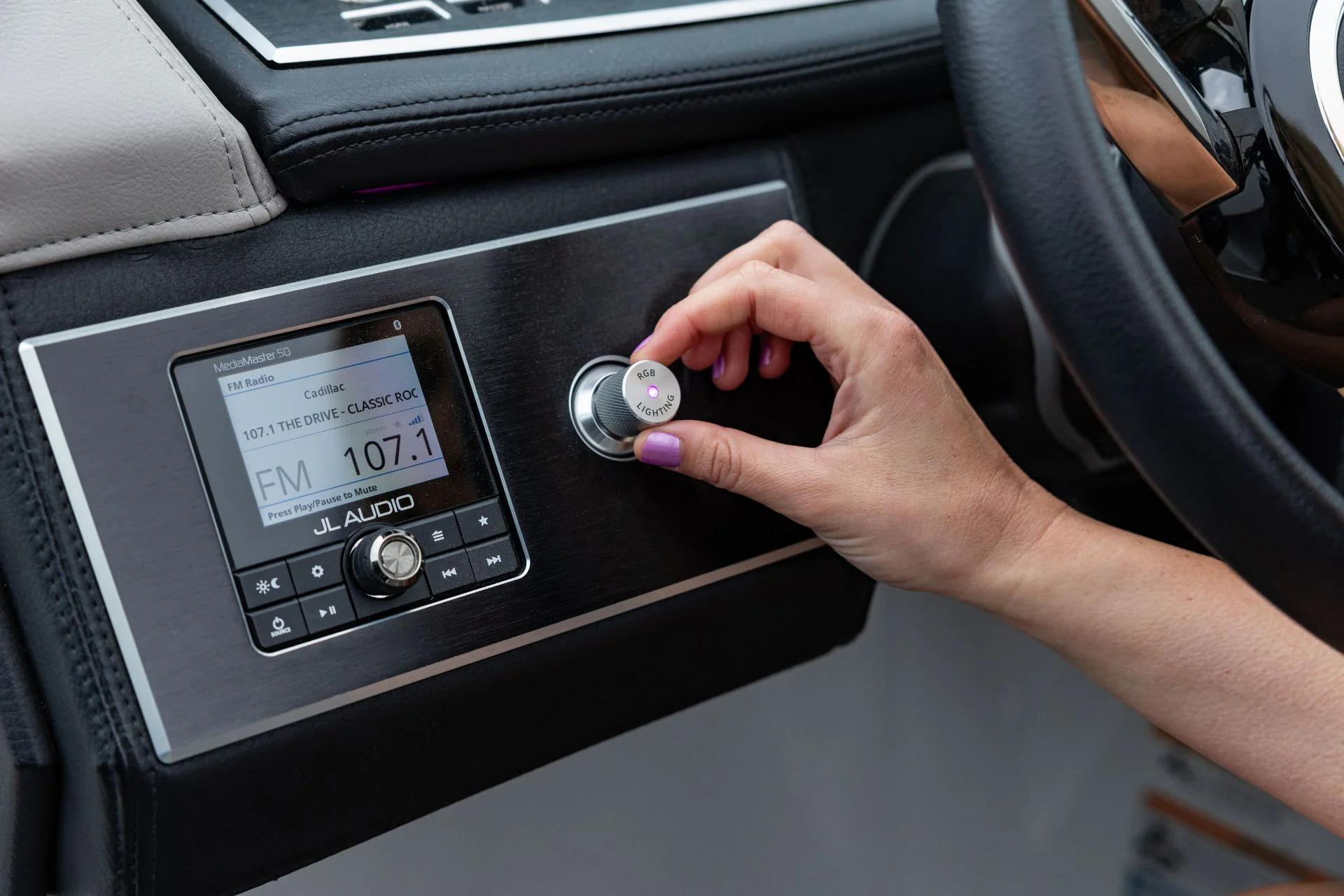

Stereo, w/ AM/FM radio, Bluetooth®
USB port(s)

Engine / Systems / Drive

Battery single w/ on-off switch
Batteries dual w/ on-off switch
Battery(ies)
Bilge blower(s)
Bilge pump(s), automatic
Engine blower
Engine vents
Outlet, 12V
Outlet, USB charge port(s)
Trim switch, power at transom
Wiring harness w/ sealed connectors and tin coating for corrosion resistance

Print specs sheet Compare Download the brochure Request out-the-door price Build your own

The Four Winns guarantee

For over 40 years, we've developed a reputation for doing the little things right. For our owners, this translates into many years of hassle-free boating. When the time comes to trade up your Four Winns, the warranty is transferable*, resulting in higher resale values.
